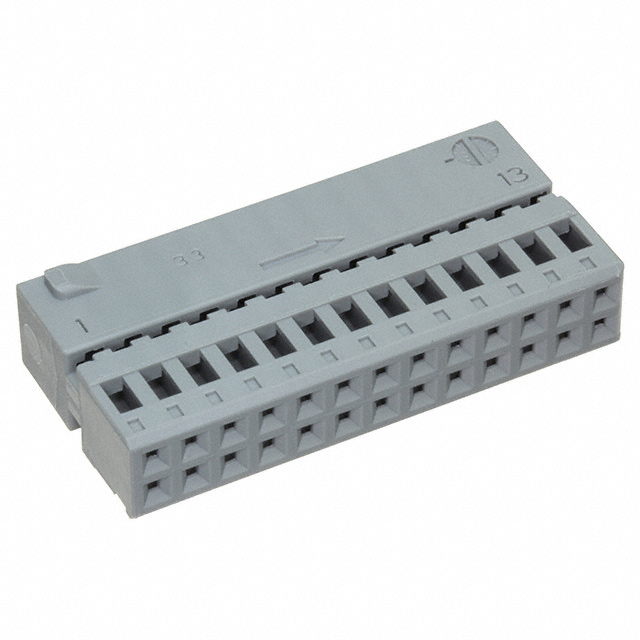

2-968326-1

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 26POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 26POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-968326-1	968326 Series

Color	Gray	Gray, Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	26	26
Number of Rows	2	2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN RCPT HSG 26POS 2.54MM

Part	Row Spacing [x]	Row Spacing	Number of Positions	Number of Rows	Contact Termination	Mounting Type	Connector Type	Note	Insulation Material	Contact Type	Pitch [x]	Pitch [x]	Color
TE Connectivity AMP Connectors 2-968326-1	0.1 in	2.54 mm	26	2	Crimp	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	Female Socket	2.54 mm	0.1 in	Gray
TE Connectivity AMP Connectors 1-968326-1	0.1 in	2.54 mm	26	2	Crimp	Free Hanging (In-Line)	Receptacle	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	Female Socket	2.54 mm	0.1 in	Black

General part information

26 Rectangular Connectors - Housings Receptacle Gray 0.100" (2.54mm)
