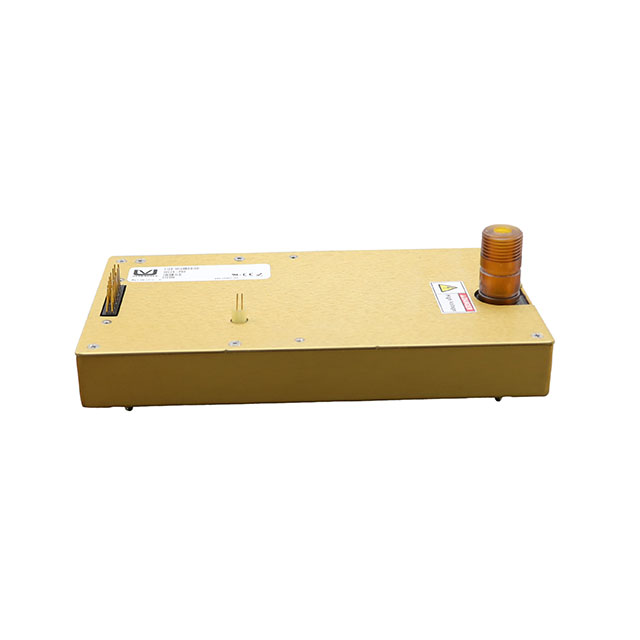

Specification	30C24-P60

Applications	ITE (Commercial)
Approval Agency	cURus, CE, cUL, UL
Control Features	Active High, Enable
Current - Output (Max)	2 mA
Features	Adjustable Output, Remote On/Off
Number of Outputs	1
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	60 W
Standard Number	60950-1
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max)	30 V p-p
Voltage - Input (Min)	23 V
Voltage - Output 1	30000 V

30C24 Series

Part	Package / Case	Control Features	Voltage - Output 1	Applications	Voltage - Input (Min)	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Current - Output (Max)	Mounting Type	Voltage - Input (Max)	Power (Watts)	Operating Temperature (Min)	Operating Temperature (Max)	Number of Outputs	Type	Approval Agency	Features
ULTRAVOLT / Advanced Energy 10C24-P60-I10-AD-DAR	Module	Active High Enable	10000 V	ITE (Commercial)	23 V	1.06 in	114.3 mm	8 in	6 mA	Through Hole	30 V p-p	60 W	-40 °C	65 °C	1	High Voltage - Non-Isolated Module	CE cURus
ULTRAVOLT / Advanced Energy 10C24-N125	Module	Active Low Enable	10000 V	ITE (Commercial)	23 V	1.06 in	114.3 mm	8 in	12.5 mA	Through Hole	30 V p-p	60 W	-40 °C	65 °C	1	High Voltage - Non-Isolated Module	CE cURus
ULTRAVOLT / Advanced Energy 10C24-P125	Module	Active High Enable	10000 V	ITE (Commercial)	23 V	1.06 in	114.3 mm	8 in	12.5 mA	Through Hole	30 V p-p	60 W	-40 °C	65 °C	1	High Voltage - Non-Isolated Module	CE cURus
ULTRAVOLT / Advanced Energy 10C24-P125-I10-AD-H-Z11	Module	Active High Enable	10000 V	ITE (Commercial)	23 V	1.46 in	114.3 mm	8 in	12.5 mA	Through Hole	30 V p-p	15 W	-40 °C	65 °C	1	High Voltage - Non-Isolated Module	CE cURus	Heat Sink
ULTRAVOLT / Advanced Energy 10C24-P60	Module	Active High Enable	10000 V	ITE (Commercial)	23 V	1.06 in	114.3 mm	8 in	6 mA	Through Hole	30 V p-p	60 W	-40 °C	65 °C	1	High Voltage - Non-Isolated Module	CE cURus
ULTRAVOLT / Advanced Energy 10C24-N60	Module	Active Low Enable	10000 V	ITE (Commercial)	23 V	1.06 in	114.3 mm	8 in	6 mA	Through Hole	30 V p-p	60 W	-40 °C	65 °C	1	High Voltage - Non-Isolated Module	CE cURus
ULTRAVOLT / Advanced Energy 10C24-P60-I10	Module	Active High Enable	10000 V	ITE (Commercial)	23 V	1.06 in	114.3 mm	8 in	6 mA	Through Hole	30 V p-p	60 W	-40 °C	65 °C	1	High Voltage - Non-Isolated Module	CE cURus
ULTRAVOLT / Advanced Energy 10C24-P250-I5	Module	Active High Enable	10000 V	ITE (Commercial)	23 V	2.03 in	114.3 mm	9.25 in	25 mA	Through Hole	30 V p-p	60 W	-40 °C	65 °C	1	High Voltage - Non-Isolated Module	CE cURus

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

30C24-P60 | Datasheet
