CS-DSDHD78MM0-002.5

Active

AMPHENOL CABLES ON DEMAND

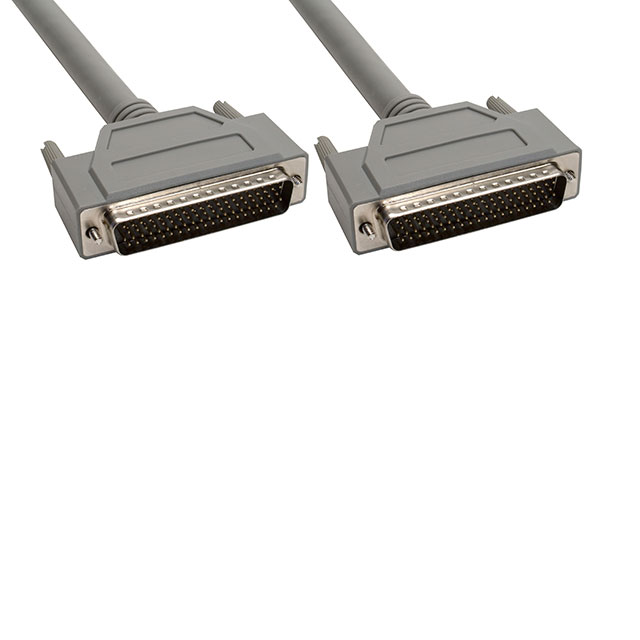

COMPUTER CABLE, HD-78 PLUG, HD-78 PLUG, 2.5 FT, 762 MM, GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

CS-DSDHD78MM0-002.5

Active

AMPHENOL CABLES ON DEMAND

COMPUTER CABLE, HD-78 PLUG, HD-78 PLUG, 2.5 FT, 762 MM, GRAY

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.34
		10	$ 40.23
		25	$ 37.72
		50	$ 35.92
		100	$ 34.20
		250	$ 32.13
Newark	Each	1	$ 42.16
		5	$ 39.36
		10	$ 36.56
		25	$ 33.70
		50	$ 31.70
		100	$ 30.30

Description

General part information

CS-DSDHD78 Series

The CS-DSDHD78MM0-002.5 from Amphenol is a grey colour copper shielded male/male 78 pin (HD78) deluxe HD D-sub cable assembly. This high density male/male D-sub cable provides exceptional performance in applications where longevity and repeated disconnects is of major concern. It integrates copper tape and aluminium mylar shielded 26AWG data grade wire with pre-terminated HD78 (aka DB78HD) male and female D-sub connectors. This cable assembly is perfect for RS232 serial data, prototype, control and low voltage applications using 78 pin HD78 interface.

Specification	CS-DSDHD78MM0-002.5	CS-DSDHD78 Series

1st Connector	Plug, Male Pins	Receptacle, Female Sockets, Plug, Male Pins
2nd Connector	Plug, Male Pins	Plug, Male Pins
Color	Gray, Individual (Round)	Gray, Individual (Round)
Length	-	1.52 m
Length	-	5 '
Length [x]	762 mm	7.62 - 762 m
Length [x]	30 "	25 - 30 ft
Number of Positions	78	78
Shielding	Shielded	Shielded
Type	HD78	HD78

Part	2nd Connector	Shielding	Color	Length	Length	1st Connector	Type	Number of Positions	Length [x]	Length [x]
AMPHENOL CABLES ON DEMAND CS-DSDHD78MF0-005	Plug, Male Pins	Shielded	Gray, Individual (Round)	1.52 m	5 '	Female Sockets, Receptacle	HD78	78
AMPHENOL CABLES ON DEMAND CS-DSDHD78MM0-005	Plug, Male Pins	Shielded	Gray, Individual (Round)	1.52 m	5 '	Plug, Male Pins	HD78	78
AMPHENOL CABLES ON DEMAND CS-DSDHD78MF0-025	Plug, Male Pins	Shielded	Gray, Individual (Round)			Female Sockets, Receptacle	HD78	78	25 ft	7.62 m
AMPHENOL CABLES ON DEMAND CS-DSDHD78MF0-002.5	Plug, Male Pins	Shielded	Gray, Individual (Round)			Female Sockets, Receptacle	HD78	78	30 "	762 mm
AMPHENOL CABLES ON DEMAND CS-DSDHD78MM0-002.5	Plug, Male Pins	Shielded	Gray, Individual (Round)			Plug, Male Pins	HD78	78	30 "	762 mm
