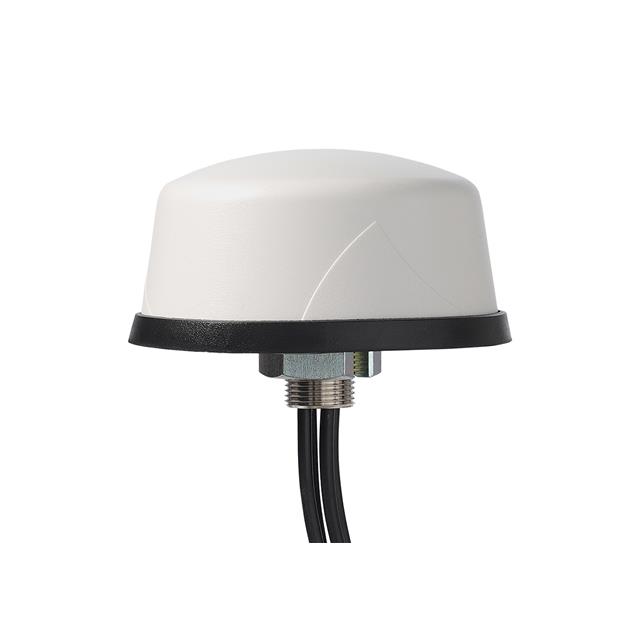

PCTHPMIMO-2-SF

Active

Amphenol PCTEL

MULTIBAND MIMO COACH PERMANENT

Search across all available documentation for this part.

Active

Amphenol PCTEL

MULTIBAND MIMO COACH PERMANENT

Technical Specifications

Parameters and characteristics for this part

MULTIBAND MIMO COACH PERMANENT

Part	Power - Max [Max]	Gain	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Ingress Protection	Frequency (Center/Band)	Frequency Range [Min]	Frequency Range [Max]	Antenna Type	Height (Max) [Max]	Height (Max)	VSWR	Mounting Type	RF Family/Standard	Number of Bands	Applications	Termination
Amphenol PCTEL PCTHPMIMO-2-SF	25 W	0.5 dBi, 1.5 dBic	4 GHz	2 GHz	3 GHz	IP67	2.55 GHz, 5.4 GHz	2.3 GHz, 4.9 GHz	2.8 GHz, 5.9 GHz	Dome	5.4 in	137.16 mm	1.8	Magnetic	WiFi	2	802.11ac	RP-SMA Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 94.39

General part information

RF ANTENNA 802.11ac Dome RP-SMA Male Magnetic
