EN4-1

Active

SAB North America

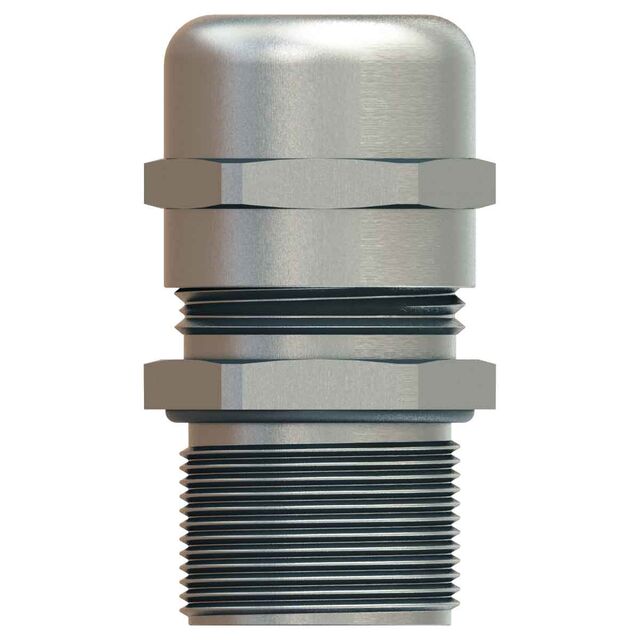

CABLE GLAND 16-25MM 1NPT BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN4-1

Active

SAB North America

CABLE GLAND 16-25MM 1NPT BRASS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 108.13
		25	$ 82.86
		50	$ 79.37
		100	$ 74.32
		250	$ 69.34
		500	$ 65.06
		1000	$ 58.23

Description

General part information

- Series

Cable Gland Brass, Nickel Plated 1" NPT Silver

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN4-1	- Series

Accessory Type	-	Sealing Ring, Thread Adapter
Color	Silver	Silver
Features	-	M25, M16
Features	-	M32, M20
Features	-	PG21 to PG29 Thread
For Use With/Related Products	-	Cable Entry Opening
Includes	-	O-Ring
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated	Nitrile Butadiene Rubber (NBR), Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max)	25 mm	25 - 44.04 mm
Outside Cable Diameter (Max)	-	14 - 44 mm
Outside Cable Diameter (Max)	-	0.551 - 1.732 in
Outside Cable Diameter (Max)	-	0.473 - 53 mm
Outside Cable Diameter (Max)	-	12.01 mm
Outside Cable Diameter (Max)	-	1.734 in
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in	0.256 - 2.087 "
Outside Cable Diameter (Min)	-	3 - 37 mm
Outside Cable Diameter (Min)	-	0.118 - 1.457 in
Outside Cable Diameter (Min)	-	13 mm
Outside Cable Diameter (Min) [Min]	0.63 in	0.157 - 0.63 in
Outside Cable Diameter (Min) [Min]	16 mm	4 - 16 mm
Panel Hole Size	-	0.472 - 2.48 in
Panel Hole Size	-	1.457 - 63 mm
Panel Hole Size	-	37 mm
Panel Hole Size [diameter]	1.315 in	1.315 - 1.85 in
Panel Hole Size [diameter]	33.4 mm	33.4 - 47 mm
Thread Length	0.787 in	0.236 - 0.866 in
Thread Length	20 mm	6 - 22 mm
Thread Size	1" NPT	PG11, PG36, PG48, 1" NPT, M40x1.5, PG7, PG29, PG16, M50x1.5, M32x1.5, PG21, PG9, 3/4 NPT, 1 1/2" NPT, M25x1.5, PG42, PG13.5, M20x1.5, 1/2" NPT, M16x1.5, 3/8" NPT, M12x1.5
Thread Size	-	-
Type	Cable Gland	Cable Gland

- Series

O-RING FOR METRIC 12 BLACK NBR

Part	Accessory Type	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Type	Panel Hole Size	Panel Hole Size	Ingress Protection	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Outside Cable Diameter (Max)
SAB North America OR-12	Sealing Ring	Nitrile Butadiene Rubber (NBR)
SAB North America EN4-1 1/4		Brass, Nickel Plated	22 mm	0.866 in	0.787 in	20 mm	Cable Gland	1.66 in	42.2 mm	IP68 - Dust Tight, Waterproof	Silver	32 mm	1.26 in	100 °C	-20 C
SAB North America EP2-11		Brass, Nickel Plated			0.236 in	6 mm	Cable Gland	0.732 in	18.6 mm	IP68 - Dust Tight, Waterproof	Silver			100 °C	-20 C	5 mm	0.197 in	PG11	0.394 "	10 mm
SAB North America EP2-36		Brass, Nickel Plated	22 mm	0.866 in	0.354 in	9 mm	Cable Gland			IP68 - Dust Tight, Waterproof	Silver	32 mm	1.26 in	100 °C	-20 C			PG36			1.85 in	47 mm
SAB North America OR-36	Sealing Ring	Nitrile Butadiene Rubber (NBR)
SAB North America EM4-63C		Brass, Nickel Plated	37 mm	1.457 in	0.394 in	10 mm	Cable Gland	2.48 in	63 mm	IP68 - Dust Tight, Waterproof	Silver			100 °C	-20 C				2.087 in	53 mm
SAB North America EP2-48		Brass, Nickel Plated	34 mm	1.339 in	0.551 in	14 mm	Cable Gland	2.338 in	59.3 mm	IP68 - Dust Tight, Waterproof	Silver	44 mm	1.732 in	100 °C	-20 C			PG48
SAB North America EN4-1		Brass, Nickel Plated			0.787 in	20 mm	Cable Gland			IP68 - Dust Tight, Waterproof	Silver			100 °C	-20 C	16 mm	0.63 in	1" NPT	0.984 in		1.315 in	33.4 mm	25 mm
SAB North America OR-07	Sealing Ring	Nitrile Butadiene Rubber (NBR)
SAB North America OR-11	Sealing Ring	Nitrile Butadiene Rubber (NBR)
