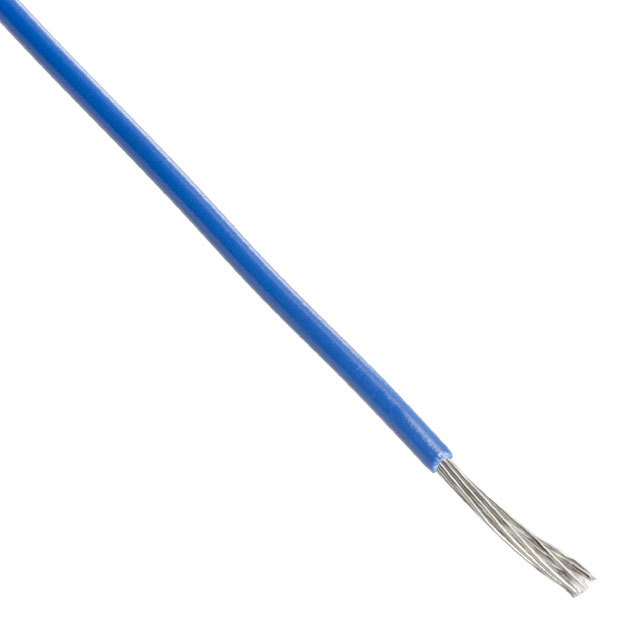

2200/16BU-101

Active

Daburn Electronics

HOOK-UP STRND 16AWG BLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2200/16BU-101

Active

Daburn Electronics

HOOK-UP STRND 16AWG BLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 0.52

Description

General part information

2200/16 Series

16 AWG Hook-Up Wire 19/29 Blue 600V 100.0' (30.5m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2200/16BU-101	2200/16 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19 Strands	19 Strands
Conductor Strand [custom]	29 AWG	29 AWG
Features	Abrasion Resistant	Abrasion Resistant
Jacket (Insulation) Diameter [diameter]	1.98 mm	1.98 mm
Jacket (Insulation) Diameter [diameter]	0.078 "	0.078 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (XLPVC), Irradiated	Poly-Vinyl Chloride (XLPVC), Irradiated
Jacket (Insulation) Thickness	0.25 mm	0.25 mm
Jacket (Insulation) Thickness	0.01 in	0.01 in
Jacket Color	Blue	Green, Yellow, Blue, Orange, Gray, Red
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Qualification	MIL-W-16878 Type B	MIL-W-16878 Type B
Ratings	UL Style 1429	UL Style 1429
Voltage	600 V	600 V
Wire Gauge	16 AWG	16 AWG

2200/16 Series

HOOK-UP STRND 16AWG GRN

Part	Length	Length	Conductor Material	Ratings	Features	Jacket Color	Cable Type	Qualification	Jacket (Insulation) Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]
Daburn Electronics 2200/16GR-1000	1000 ft	304.8 m	Copper, Tinned	UL Style 1429	Abrasion Resistant	Green	Hook-Up	MIL-W-16878 Type B	Poly-Vinyl Chloride (XLPVC), Irradiated	600 V	19 Strands	29 AWG	1.98 mm	0.078 "	16 AWG	0.25 mm	0.01 in	105 ░C	-55 °C
Daburn Electronics 2200/16YL-1000	1000 ft	304.8 m	Copper, Tinned	UL Style 1429	Abrasion Resistant	Yellow	Hook-Up	MIL-W-16878 Type B	Poly-Vinyl Chloride (XLPVC), Irradiated	600 V	19 Strands	29 AWG	1.98 mm	0.078 "	16 AWG	0.25 mm	0.01 in	105 ░C	-55 °C
Daburn Electronics 2200/16WH-1000	1000 ft	304.8 m	Copper, Tinned	UL Style 1429	Abrasion Resistant		Hook-Up	MIL-W-16878 Type B	Poly-Vinyl Chloride (XLPVC), Irradiated	600 V	19 Strands	29 AWG	1.98 mm	0.078 "	16 AWG	0.25 mm	0.01 in	105 ░C	-55 °C
Daburn Electronics 2200/16WH-100			Copper, Tinned	UL Style 1429	Abrasion Resistant		Hook-Up	MIL-W-16878 Type B	Poly-Vinyl Chloride (XLPVC), Irradiated	600 V	19 Strands	29 AWG	1.98 mm	0.078 "	16 AWG	0.25 mm	0.01 in	105 ░C	-55 °C	30.5 m	100 ft
Daburn Electronics 2200/16BU-101			Copper, Tinned	UL Style 1429	Abrasion Resistant	Blue	Hook-Up	MIL-W-16878 Type B	Poly-Vinyl Chloride (XLPVC), Irradiated	600 V	19 Strands	29 AWG	1.98 mm	0.078 "	16 AWG	0.25 mm	0.01 in	105 ░C	-55 °C	30.5 m	100 ft
Daburn Electronics 2200/16YL-100			Copper, Tinned	UL Style 1429	Abrasion Resistant	Yellow	Hook-Up	MIL-W-16878 Type B	Poly-Vinyl Chloride (XLPVC), Irradiated	600 V	19 Strands	29 AWG	1.98 mm	0.078 "	16 AWG	0.25 mm	0.01 in	105 ░C	-55 °C	30.5 m	100 ft
Daburn Electronics 2200/16OR-100			Copper, Tinned	UL Style 1429	Abrasion Resistant	Orange	Hook-Up	MIL-W-16878 Type B	Poly-Vinyl Chloride (XLPVC), Irradiated	600 V	19 Strands	29 AWG	1.98 mm	0.078 "	16 AWG	0.25 mm	0.01 in	105 ░C	-55 °C	30.5 m	100 ft
Daburn Electronics 2200/16GY-1000	1000 ft	304.8 m	Copper, Tinned	UL Style 1429	Abrasion Resistant	Gray	Hook-Up	MIL-W-16878 Type B	Poly-Vinyl Chloride (XLPVC), Irradiated	600 V	19 Strands	29 AWG	1.98 mm	0.078 "	16 AWG	0.25 mm	0.01 in	105 ░C	-55 °C
Daburn Electronics 2200/16RD-100			Copper, Tinned	UL Style 1429	Abrasion Resistant	Red	Hook-Up	MIL-W-16878 Type B	Poly-Vinyl Chloride (XLPVC), Irradiated	600 V	19 Strands	29 AWG	1.98 mm	0.078 "	16 AWG	0.25 mm	0.01 in	105 ░C	-55 °C	30.5 m	100 ft
