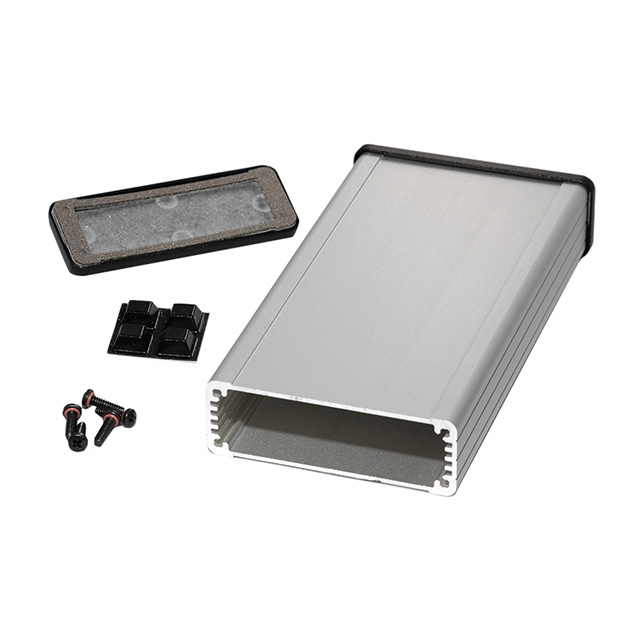

Specification	1457J1602E

Area (L x W)	23 in²
Color	Natural
Container Type	Box
Design	End Panel(s)
Features	Mounting Flange, Watertight, EMI Shielded, Card Guides
Height	1.239 in
Material	Aluminum
Ratings	IP54
Size / Dimension Length	6.722 in
Size / Dimension Width	3.424 in
Thickness	0.06 in

1457 Series

...

Part	Weight	Color	Area (L x W)	Height	Design	Container Type	Features	Thickness	Ratings	Size / Dimension Width	Size / Dimension Length	Material	Type	For Use With/Related Products
Hammond Manufacturing 1457K1602E	0.6 lb	Natural	22.9 in²	1.85 in	End Panel(s)	Box	Card Guides EMI Shielded Mounting Flange Watertight	0.06 in	IP54	3.418 in	6.693 in	Aluminum
Hammond Manufacturing 1457N1601EBK	0.8 lb	Black	29 in²	2.308 in	End Panel(s)	Box	Card Guides EMI Shielded Watertight	0.06 in	IP54	4.252 in	6.811 in	Aluminum
Hammond Manufacturing 1457C1202BK		Black	12.3 in²	1.335 in	End Panel(s)	Box	Card Guides Mounting Flange Watertight	0.06 in	IP65	2.441 in	5 in	Aluminum
Hammond Manufacturing 1457KEPF-10		Black					EMI Gasket IP54			1.85 in	3.421 in	Aluminum	End Panel	1457 Series
Hammond Manufacturing 1457J1601E		Natural	23.1 in²	1.237 in	End Panel(s)	Box	Card Guides EMI Shielded Watertight	0.06 in	IP54	3.424 in	6.738 in	Aluminum
Hammond Manufacturing 1457K1601BK		Black	22.8 in²	1.855 in	End Panel(s)	Box	Card Guides Watertight	0.06 in	IP65	3.425 in	6.666 in	Aluminum
Hammond Manufacturing 1457K1202BK		Black	17.5 in²	1.847 in	End Panel(s)	Box	Card Guides Mounting Flange Watertight	0.06 in	IP65	3.418 in	5.118 in	Aluminum
Hammond Manufacturing 1457NEPF		Black					EMI Gasket IP54			2.308 in	4.252 in	Aluminum	End Panel	1457 Series
Hammond Manufacturing 1457C802BK		Black	8.6 in²	1.335 in	End Panel(s)	Box	Card Guides Mounting Flange Watertight	0.06 in	IP65	2.441 in	3.523 in	Aluminum
Hammond Manufacturing 1457K1201		Natural	17.5 in²	1.855 in	End Panel(s)	Box	Card Guides Watertight	0.06 in	IP65	3.425 in	5.118 in	Aluminum
