W1S204-40ML5

Active

Rosenberger

WSMP EDGE MOUNT PCB PLUG, FULL D

Search across all available documentation for this part.

Active

Rosenberger

WSMP EDGE MOUNT PCB PLUG, FULL D

Technical Specifications

Parameters and characteristics for this part

Specification	W1S204-40ML5

Body Finish	Gold
Body Material	Nickel, Iron, Cobalt
Center Contact Material	Cobalt, Iron, Nickel
Center Contact Plating	Gold
Connector Style	WSMP
Connector Type	Male Pin, Plug
Contact Termination	Solder
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	100 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	150 VDC

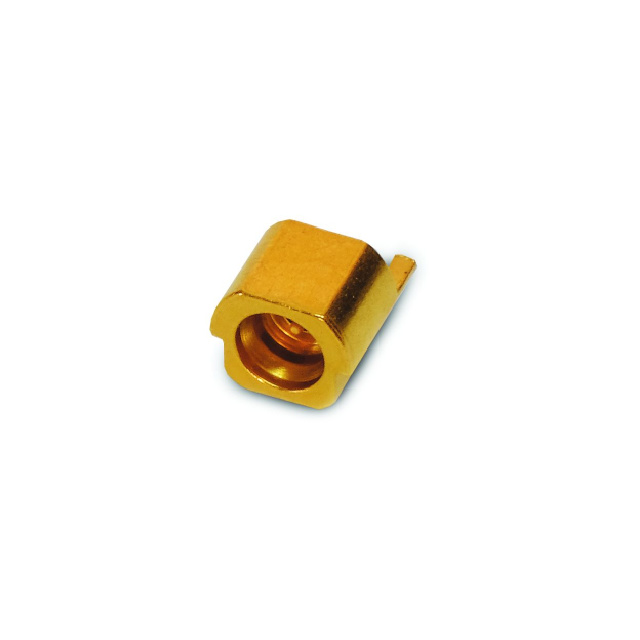

WSMP EDGE MOUNT PCB PLUG, FULL D

Part	Number of Ports	Connector Style	Housing Color	Connector Type	Features	Mounting Type	Fastening Type	Contact Termination	Impedance	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Shield Termination	Body Finish	Center Contact Plating	Frequency - Max [Max]	Body Material
Rosenberger W1S204-40ML5	1	WSMP	Gold	Male Pin, Plug	Full Detent	Board Edge, Cutout, Surface Mount	Snap-On	Solder	50 Ohms	150 VDC	165 °C	-55 °C	Cobalt, Iron, Nickel	Solder	Gold	Gold	100 GHz	Cobalt, Iron, Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 92.19

General part information

WSMP Connector Plug, Male Pin 50 Ohms Board Edge, Cutout; Surface Mount Solder
