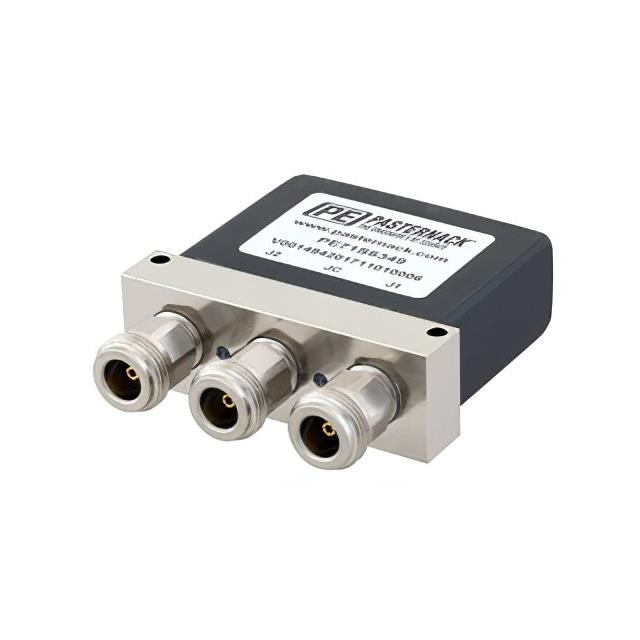

PE71S6349
ActivePasternack
SPDT ELECTROMECHANICAL RELAY LAT
PE71S6349
ActivePasternack
SPDT ELECTROMECHANICAL RELAY LAT
Description
General part information
PE71S6349
RF Switch IC General Purpose SPDT 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | PE71S6349 |
|---|---|
| Circuit | SPDT |
| Frequency Range (Max) | 12 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.3 dB |
| Isolation | 90 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| RF Type | General Purpose |
| Test Frequency | 12 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 13 V |
| Voltage - Supply (Minimum) | 11 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
