ERM8-100-09.0-L-DV

Active

Samtec Inc.

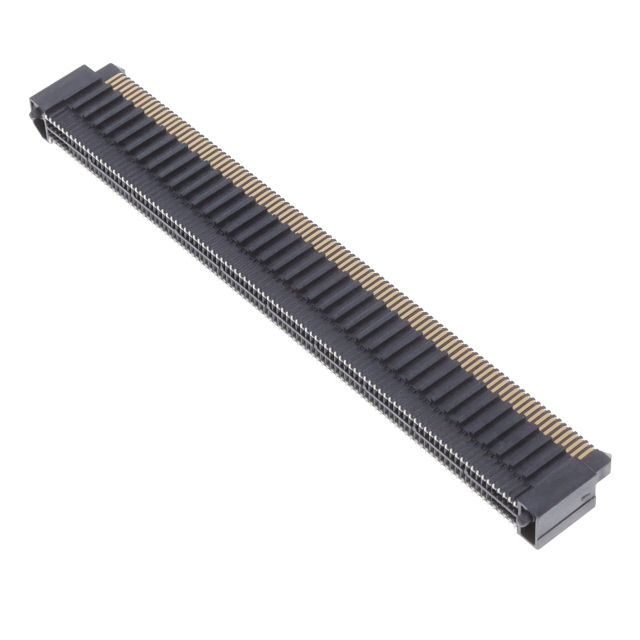

CONN HDR 200POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 200POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-100-09.0-L-DV

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	0.508 in
Height Above Board	12.91 mm
Mated Stacking Heights	14 mm, 19 mm, 16 mm
Mounting Type	Surface Mount
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Connector Type	Height Above Board	Height Above Board	Mounting Type	Features	Mated Stacking Heights	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch [x]	Pitch [x]
Samtec Inc. ERM8-100-09.0-L-DV	Header Center Strip Contacts	0.508 in	12.91 mm	Surface Mount	Board Guide	14 mm 16 mm 19 mm	Gold	10 Áin	0.25 Ám	2	0.8 mm	0.031 in
Samtec Inc. ERM8-100-09.0-S-DV	Header Center Strip Contacts	0.508 in	12.91 mm	Surface Mount	Board Guide	14 mm 16 mm 19 mm	Gold	30 Áin	0.76 Ám	2	0.8 mm	0.031 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

200 Position Connector Header, Center Strip Contacts Surface Mount Gold
