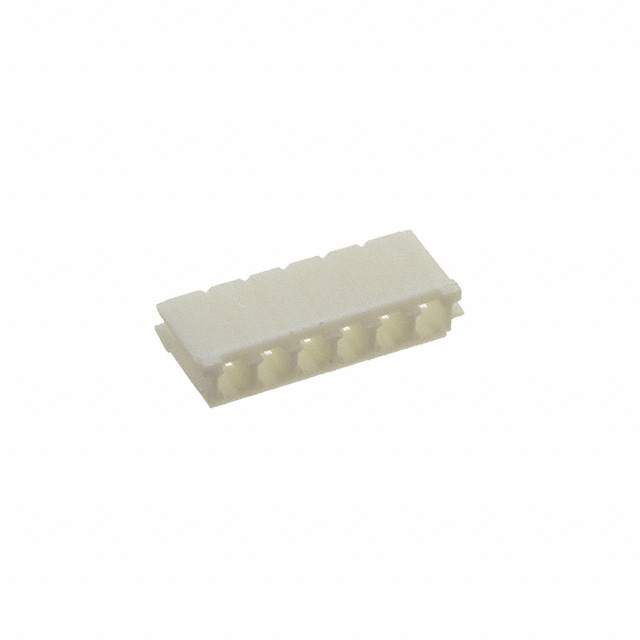

25CH-C-06
ActiveAdam Tech
CONN RCPT HSG 6POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
25CH-C-06
ActiveAdam Tech
CONN RCPT HSG 6POS 2.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 25CH-C-06 | 25CH-C Series |
|---|---|---|
| Color | White | White |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Friction Lock | Friction Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 6 - 10 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Pitch [x] | 0.098 in | 0.098 in |
| Pitch [x] | 2.5 mm | 2.5 mm |
25CH-C Series
CONN RCPT HSG 9POS 2.50MM
| Part | Insulation Material | Contact Type | Number of Positions | Number of Rows | Note | Pitch [x] | Pitch [x] | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Fastening Type | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech 25CH-C-09 | Polyamide (PA66), Nylon 6/6 | Female Socket | 9 | 1 | Contacts Not Included | 0.098 in | 2.5 mm | Crimp | -25 °C | 85 °C | Receptacle | Friction Lock | Free Hanging (In-Line) | White |
Adam Tech 25CH-C-06 | Polyamide (PA66), Nylon 6/6 | Female Socket | 6 | 1 | Contacts Not Included | 0.098 in | 2.5 mm | Crimp | -25 °C | 85 °C | Receptacle | Friction Lock | Free Hanging (In-Line) | White |
Adam Tech 25CH-C-10 | Polyamide (PA66), Nylon 6/6 | Female Socket | 10 | 1 | Contacts Not Included | 0.098 in | 2.5 mm | Crimp | -25 °C | 85 °C | Receptacle | Friction Lock | Free Hanging (In-Line) | White |
Adam Tech 25CH-C-03 | Polyamide (PA66), Nylon 6/6 | Female Socket | 1 | Contacts Not Included | 0.098 in | 2.5 mm | Crimp | -25 °C | 85 °C | Receptacle | Friction Lock | Free Hanging (In-Line) | White | |
Adam Tech 25CH-C-05 | Polyamide (PA66), Nylon 6/6 | Female Socket | 1 | Contacts Not Included | 0.098 in | 2.5 mm | Crimp | -25 °C | 85 °C | Receptacle | Friction Lock | Free Hanging (In-Line) | White |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.10 | |
| 10 | $ 0.05 | |||
| 25 | $ 0.04 | |||
| 50 | $ 0.04 | |||
| 100 | $ 0.04 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.03 | |||
| 2500 | $ 0.03 | |||
Description
General part information
25CH-C Series
6 Rectangular Connectors - Housings Receptacle White 0.098" (2.50mm)
