RC14JT200R
ObsoleteStackpole Electronics Inc

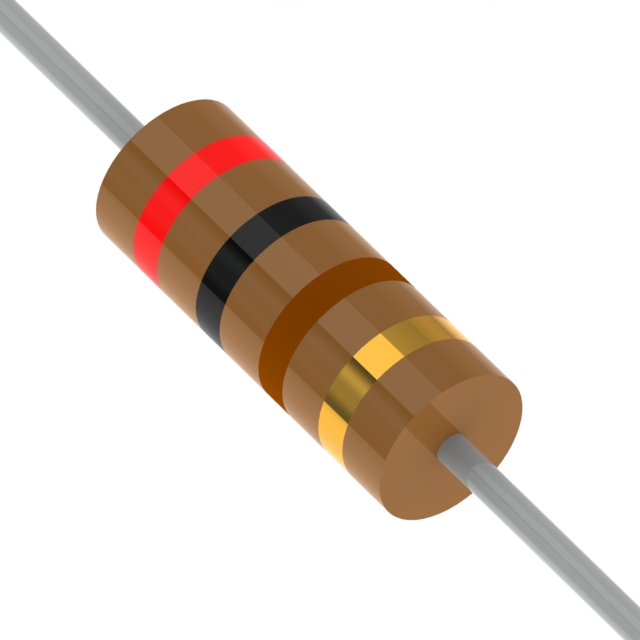

RES 200 OHM 5% 1/4W AXIAL
RC14JT200R
ObsoleteStackpole Electronics Inc
RES 200 OHM 5% 1/4W AXIAL
Description
General part information
RC14JT200R
200 Ohms ±5% 0.25W, 1/4W Through Hole Resistor Axial Non-Inductive, Pulse Withstanding Carbon Composition
Technical Specifications
Parameters and characteristics for this part
| Specification | RC14JT200R |
|---|---|
| Composition | Carbon Composition |
| Features | Non-Inductive, Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 200 Ohm |
| Size / Dimension Diameter | 0.094 in |
| Size / Dimension Length | 0.248 in |
| Tolerance | 5 % |
