ESS-121-T-05

Active

Samtec Inc.

CONN SOCKET 21POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsESS Datasheet Datasheet

ESS-121-T-05

Active

Samtec Inc.

CONN SOCKET 21POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsESS Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESS-121-T-05

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.173 in
Contact Length - Post	4.4 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.5 in
Insulation Height	12.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	21
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

ESS-121 Series

Part	Contact Finish - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Insulation Color	Connector Type	Mounting Type	Insulation Material	Number of Rows	Termination	Insulation Height [z]	Insulation Height [z]	Contact Type	Number of Positions Loaded	Fastening Type	Number of Positions	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. ESS-121-T-03	Gold	Beryllium Copper	-55 °C	125 °C	3.12 mm	0.123 in	UL94 V-0	Black	Elevated Socket	Through Hole	Liquid Crystal Polymer (LCP)	1	Solder	0.3 in	7.62 mm	Female Socket	All	Push-Pull	21	Tin	10 çin	0.25 çm	0.1 in	2.54 mm	Circular
Samtec Inc. ESS-121-TT-28		Beryllium Copper	-55 °C	125 °C			UL94 V-0	Black	Elevated Socket	Through Hole	Liquid Crystal Polymer (LCP)	1	Solder	0.3 in	7.62 mm	Female Socket	All	Push-Pull	21	Tin			0.1 in	2.54 mm	Circular	0.373 in	9.47 mm
Samtec Inc. ESS-121-T-05	Gold	Beryllium Copper	-55 °C	125 °C			UL94 V-0	Black	Elevated Socket	Through Hole	Liquid Crystal Polymer (LCP)	1	Solder			Female Socket	All	Push-Pull	21	Tin	10 çin	0.25 çm	0.1 in	2.54 mm	Circular	0.173 in	4.4 mm	0.5 in	12.7 mm
Samtec Inc. ESS-121-TT-25		Beryllium Copper	-55 °C	125 °C			UL94 V-0	Black	Elevated Socket	Through Hole	Liquid Crystal Polymer (LCP)	1	Solder			Female Socket	All	Push-Pull	21	Tin			0.1 in	2.54 mm	Circular	0.173 in	4.4 mm	0.5 in	12.7 mm
Samtec Inc. ESS-121-G-03	Gold	Beryllium Copper	-55 °C	125 °C	3.12 mm	0.123 in	UL94 V-0	Black	Elevated Socket	Through Hole	Liquid Crystal Polymer (LCP)	1	Solder	0.3 in	7.62 mm	Female Socket	All	Push-Pull	21	Gold	10 çin	0.25 çm	0.1 in	2.54 mm	Circular					10 çin	0.25 çm
Samtec Inc. ESS-121-G-05	Gold	Beryllium Copper	-55 °C	125 °C			UL94 V-0	Black	Elevated Socket	Through Hole	Liquid Crystal Polymer (LCP)	1	Solder			Female Socket	All	Push-Pull	21	Gold	10 çin	0.25 çm	0.1 in	2.54 mm	Circular	0.173 in	4.4 mm	0.5 in	12.7 mm	10 çin	0.25 çm
Samtec Inc. ESS-121-G-04	Gold	Beryllium Copper	-55 °C	125 °C	3.12 mm	0.123 in	UL94 V-0	Black	Elevated Socket	Through Hole	Liquid Crystal Polymer (LCP)	1	Solder			Female Socket	All	Push-Pull	21	Gold	10 çin	0.25 çm	0.1 in	2.54 mm	Circular			0.4 in	10.16 mm	10 çin	0.25 çm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.81
		10	$ 7.53
		100	$ 5.86
		500	$ 4.97
		1000	$ 4.65

Description

General part information

ESS-121 Series

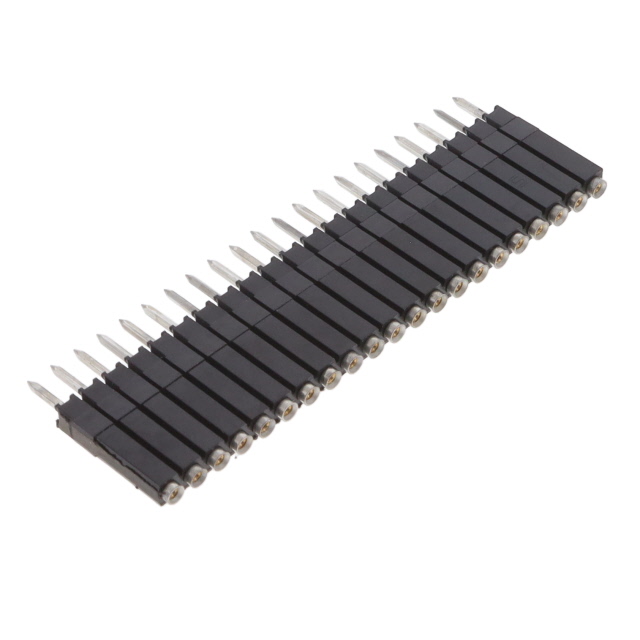

21 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

ESS Datasheet

Datasheet
