927855-6

Active

TE Connectivity AMP Connectors

CONN QC RCPT 13.5-17AWG 0.250

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 13.5-17AWG 0.250

Technical Specifications

Parameters and characteristics commom to parts in this series

POS-LOCK RECEPTACLE 6,3

Part	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Mounting Type	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Insulation	Termination	Length - Overall [x]	Length - Overall [x]	Gender	Contact Material	Terminal Type
TE Connectivity AMP Connectors 927855-8	0.122 "	2.11 mm	3.1 mm	0.083 "	14 AWG	17 AWG	Silver	Free Hanging (In-Line)	6.35 mm	0.25 in	0.031 "	0.79 mm	Non-Insulated	Crimp	0.878 in	22.3 mm	Female	Phosphor Bronze	Standard
TE Connectivity AMP Connectors 927855-6	0.122 "	2.11 mm	3.1 mm	0.083 "	14 AWG	17 AWG	Tin	Free Hanging (In-Line)	6.35 mm	0.25 in	0.031 "	0.79 mm	Non-Insulated	Crimp	0.878 in	22.3 mm	Female	Brass	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

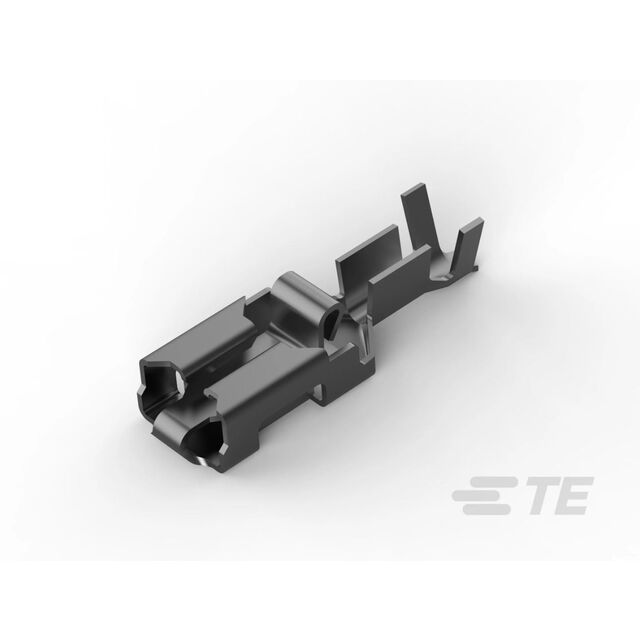

0.250" (6.35mm) Quick Connect Female 13.5-17 AWG Crimp Connector Non-Insulated
