WP934SA/IYGD5V
ActiveKingbright

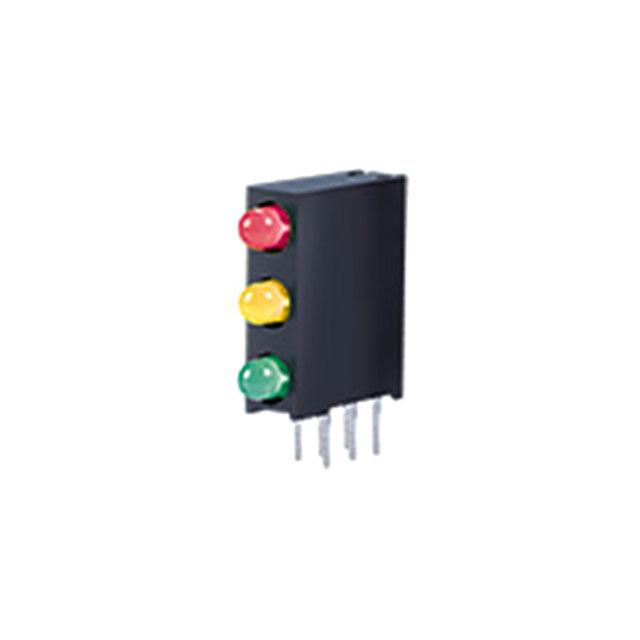

LED CBI 2.9MM 3X1 GRN/RED/YL RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP934SA/IYGD5V
ActiveKingbright
LED CBI 2.9MM 3X1 GRN/RED/YL RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP934SA/IYGD5V |
|---|---|
| Color | Yellow, Red, Green |
| Configuration | 3 High |
| Current | 17.5 mA, 17.5 mA, 17.5 mA |
| Lens Size [diameter] | 2.9 mm |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating [custom] | 14 mcd |
| Millicandela Rating [custom] | 25 mcd |
| Millicandela Rating [custom] | 15 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle [custom] | 40 ° |
| Voltage Rating | 6V Yellow, 6V Red, 6V Green |
| Wavelength - Peak | 617 nm, 568 nm, 588 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.35 | |
| 10 | $ 1.57 | |||
| 125 | $ 1.21 | |||
| 500 | $ 1.09 | |||
| 1000 | $ 0.94 | |||
| 2000 | $ 0.89 | |||
| 5000 | $ 0.87 | |||
| 10000 | $ 0.85 | |||
Description
General part information
WP934SA/IYGD5V
LED Circuit Board Indicator LED Circuit Board Indicator 3 High Green (x 1), Red (x 1), Yellow (x 1) Diffused, Tinted 6V Green, 6V Red, 6V Yellow 17.5mA Green, 17.5mA Red, 17.5mA Yellow Round with Domed Top 2.90mm Dia Through Hole, Right Angle
