NBA-10162
ActiveBUD INDUSTRIES
BOX ABS GRY/CLR 11.81"L X 7.85"W
NBA-10162
ActiveBUD INDUSTRIES
BOX ABS GRY/CLR 11.81"L X 7.85"W
Description
General part information
NBA-10162

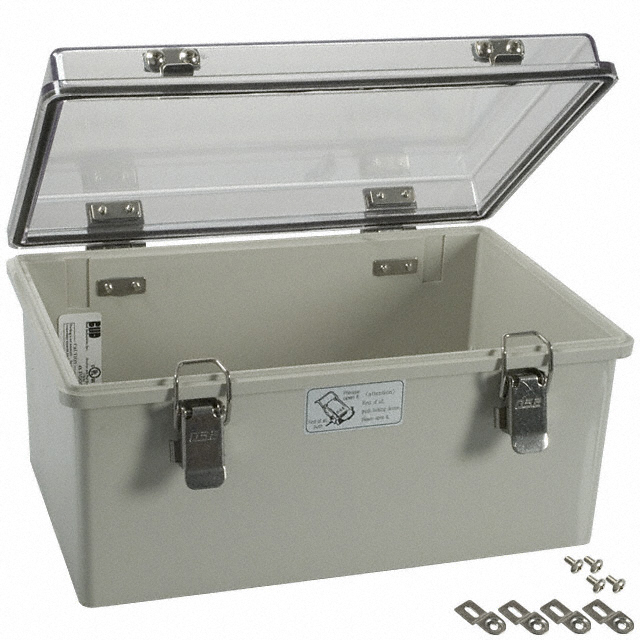

Box Plastic, ABS Gray, Clear Cover/Door Hinged Door, Lid 11.807" L x 7.850" W (299.90mm x 199.39mm) X 5.973" (151.71mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NBA-10162 |
|---|---|
| Area (L x W) | 92.7 in² |
| Color | Clear Cover/Door, Gray |
| Container Type | Box |
| Design | Lid, Hinged Door |
| Features | Stainless Steel Hinges, PCB Supports |
| Height | 5.973 in |
| Material | ABS, Plastic |
| Material Flammability Rating | UL94 V-0, UL94 5VB |
| Ratings | 13, NEMA 1, 12, 2, IP66, 4, 4X |
| Size / Dimension Length | 11.807 in |
| Size / Dimension Width | 7.85 in |
| Thickness | 0.14 in |
| Weight | 3.4 lbs |
