9421502.16.T

Active

JULABO

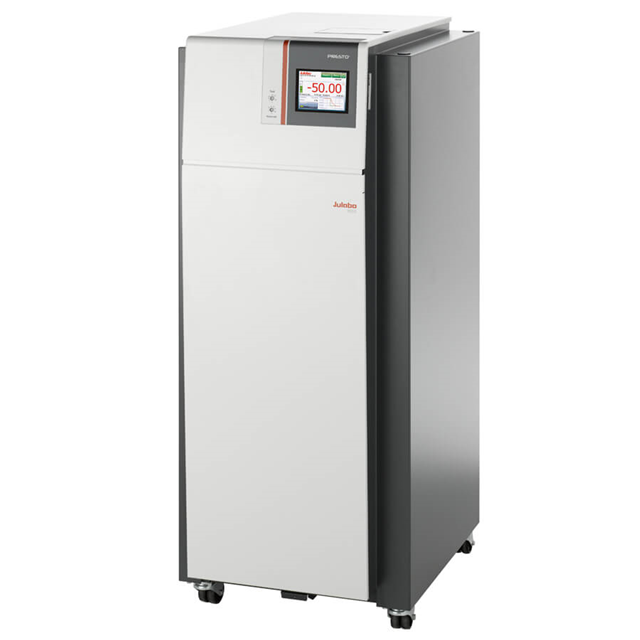

PRESTO W50T, WATER-COOLED REFRIG

Search across all available documentation for this part.

Active

JULABO

PRESTO W50T, WATER-COOLED REFRIG

Technical Specifications

Parameters and characteristics for this part

Specification	9421502.16.T

Dimensions - Overall [x]	26.2 "
Dimensions - Overall [x]	665.5 mm
Dimensions - Overall [y]	20.9 "
Dimensions - Overall [y]	530.9 mm
Dimensions - Overall [z]	51.18 "
Dimensions - Overall [z]	1300 mm
Features	Temperature Control
Flow Rate [Max]	20.08 GPM
Flow Rate [Max]	76 LPM
Flow Rate [Min]	9.25 GPM
Flow Rate [Min]	35 LPM
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-50 °C
Power - Cooling	7000 W
Product Type	Active, Recirculating Chiller/Heater
Weight	463 lbs
Weight	210 kg

PRESTO W50T, WATER-COOLED REFRIG

Part	Product Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Power - Cooling	Flow Rate [Min]	Flow Rate [Max]	Flow Rate [Max]	Flow Rate [Min]	Weight	Weight	Dimensions - Overall [y]	Dimensions - Overall [x]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [z]
JULABO 9421502.16.T	Active, Recirculating Chiller/Heater	250 °C	-50 °C	Temperature Control	7000 W	9.25 GPM	20.08 GPM	76 LPM	35 LPM	463 lbs	210 kg	20.9 "	26.2 "	665.5 mm	51.18 "	530.9 mm	1300 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72584.00

General part information

Active, Recirculating Chiller/Heater 208 ~ 400VAC 7000 W 9.25GPM-20.08GPM (35.0LPM-76.0LPM)

Technical documentation and resources

No documents available
