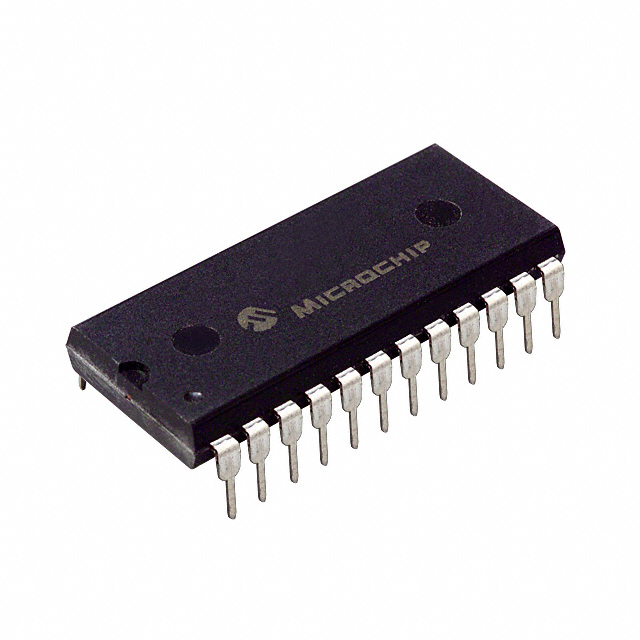

TC14433EPG
ActiveIC DRVR 7 SEG 3 1/2 DIGIT 24DIP
Deep-Dive with AI
Search across all available documentation for this part.
TC14433EPG
ActiveIC DRVR 7 SEG 3 1/2 DIGIT 24DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TC14433EPG | TC14433 Series |
|---|---|---|
| - | - | |
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Package / Case | 24-DIP | 28-LCC (J-Lead), 24-SOIC, 24-DIP, 24-CDIP |
| Package / Case | 0.6 in | 0.6 - 15.24 in |
| Package / Case | 15.24 mm | 15.24 mm |
| Package / Case | - | 7.5 mm |
| Package / Case | - | 0.295 in |
| Package / Case | - | 0.6 in |
| Supplier Device Package | 24-PDIP | 28-PLCC (11.51x11.51), 24-SOIC, 24-PDIP, 24-CERDIP |
| Voltage - Supply [Max] | 8 V | 8 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TC14433 Series
3-1/2 Digit, Analog-to-Digital Converter
| Part | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Mounting Type | Package / Case [custom] | Package / Case [custom] | Package / Case | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology TC14433ELI713 | ||||||||||||
Microchip Technology TC14433ELI | 28-LCC (J-Lead) | 4.5 V | 8 V | 85 °C | -40 °C | 28-PLCC (11.51x11.51) | Surface Mount | |||||
Microchip Technology TC14433ELI | ||||||||||||
Microchip Technology TC14433ELI | ||||||||||||
Microchip Technology TC14433AEPG | ||||||||||||
Microchip Technology TC14433ELI713 | 28-LCC (J-Lead) | 4.5 V | 8 V | 85 °C | -40 °C | 28-PLCC (11.51x11.51) | Surface Mount | |||||
Microchip Technology TC14433ELI713 | ||||||||||||
Microchip Technology TC14433COG | 24-SOIC | 4.5 V | 8 V | 70 °C | 0 °C | 24-SOIC | Surface Mount | 7.5 mm | 0.295 in | |||
Microchip Technology TC14433AELI713 | ||||||||||||
Microchip Technology TC14433EPG | 24-DIP | 4.5 V | 8 V | 85 °C | -40 °C | 24-PDIP | Through Hole | 0.6 in | 15.24 mm |
Description
General part information
TC14433 Series
The TC14433 is a low power, high-performance, monolithic CMOS 3½ digit A/D converter. The TC14433 combines both analog and digital circuits on a single IC, thus minimizing the number of external components. This dual-slope A/D converter provides automatic polarity and zero correction with the addition of two external resistors and two capacitors. The full-scale voltage range of this ratiometric IC extends from 199.9 millivolts to 1.999 volts. The TC14433 can operate over a wide range of power supply voltages, including batteries and standard 5-volt supplies.
