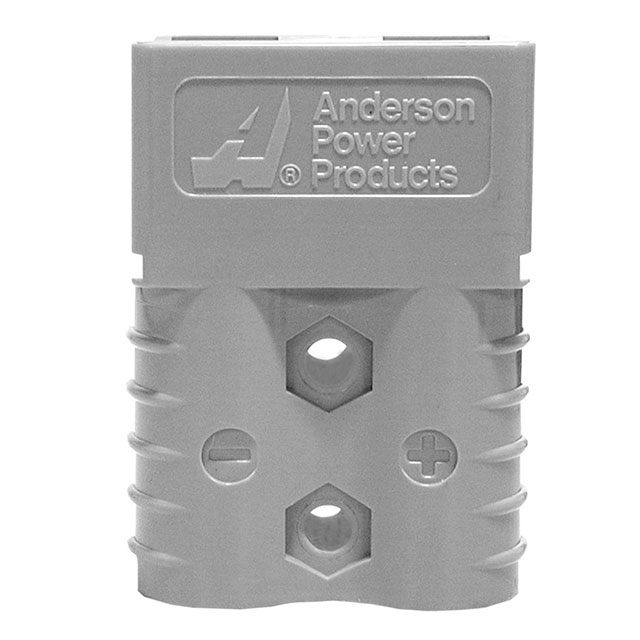

6810G1
ActiveAnderson Power Products, Inc.
CONN HSG 2POS GRAY
6810G1
ActiveAnderson Power Products, Inc.
CONN HSG 2POS GRAY
Description
General part information
6810G1
2 Position Blade Type Power Housing Connector Non-Gendered Gray
Technical Specifications
Parameters and characteristics for this part
| Specification | 6810G1 |
|---|---|
| Color | Gray |
| Connector Type | Non-Gendered |
| Contact Termination | Crimp |
| Contact Type | Non-Gendered |
| Current Rating | 120 A |
| Fastening Type | Spring Retention |
| Material - Insulation | PC, Polycarbonate |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Stacking Direction | Side to Side |
| Voltage Rating | 600 V |
