FMCA1318-36
ActiveFairview Microwave
CBL ASSY 4.1/9.5 MINI DINPLUG-4.
FMCA1318-36
ActiveFairview Microwave
CBL ASSY 4.1/9.5 MINI DINPLUG-4.
Description
General part information
FMCA1318-36

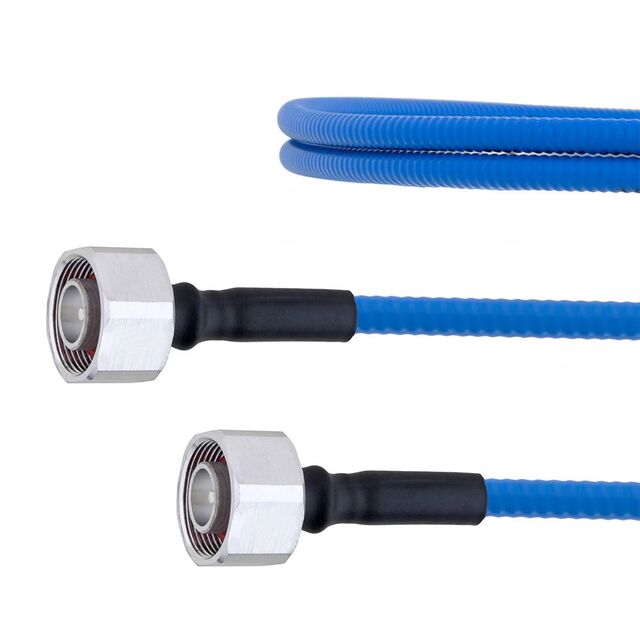

Cable Assembly Coaxial 4.1/9.5 to 4.1/9.5 SPP-250LLPL 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1318-36 |
|---|---|
| 1st Connector | 4.1/9.5 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 4.1 mm |
| 1st Connector Dimension (2) | 9.5 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 4.1 mm |
| 1st Connector Size (Dimension 2) | 9.5 mm |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | 4.1/9.5 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPP, 250LLPL |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 36 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 4.1/9.5 to 4.1/9.5 |
