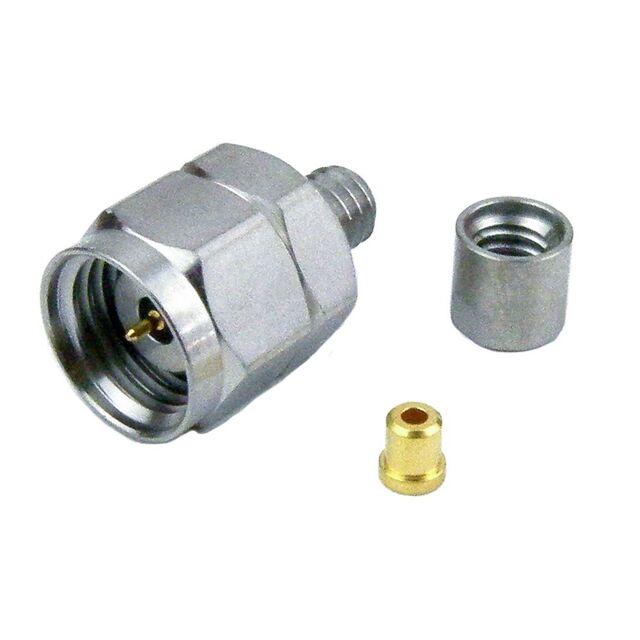

SMC185-0355
ObsoleteFairview Microwave
CONN PLUG CLAMP/SOLDER 1.85MM
SMC185-0355
ObsoleteFairview Microwave
CONN PLUG CLAMP/SOLDER 1.85MM
Description
General part information
SMC185-0355
1.85mm Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SMC185-0355 |
|---|---|
| Body Material | Stainless Steel |
| Cable Group | Semi Rigid |
| Cable Group Size | 0.047 " |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Plug Diameter | 1.85 mm |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Frequency - Max | 65 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Clamp |
