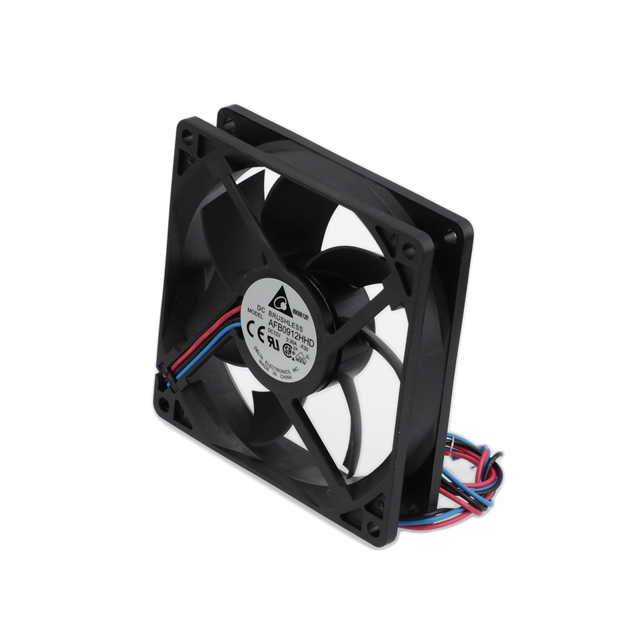

AFB0912HHD-F00
ObsoleteDelta Electronics
FAN AXIAL 92X20MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AFB0912HHD-F00
ObsoleteDelta Electronics
FAN AXIAL 92X20MM 12VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB0912HHD-F00 |
|---|---|
| Air Flow | 1.67 m³/min |
| Air Flow | 59.5 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.24 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 38 dB(A) |
| Power (Watts) | 2.88 W |
| RPM | 3000 RPM |
| Static Pressure | 0.166 in H2O |
| Static Pressure | 41.3 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 92.08 g |
| Weight | 0.203 lb |
| Width [y] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AFB0912HHD-F00
Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 59.5 CFM (1.67m³/min) 3 Wire Leads
