A6X30141164

Active

Siemens

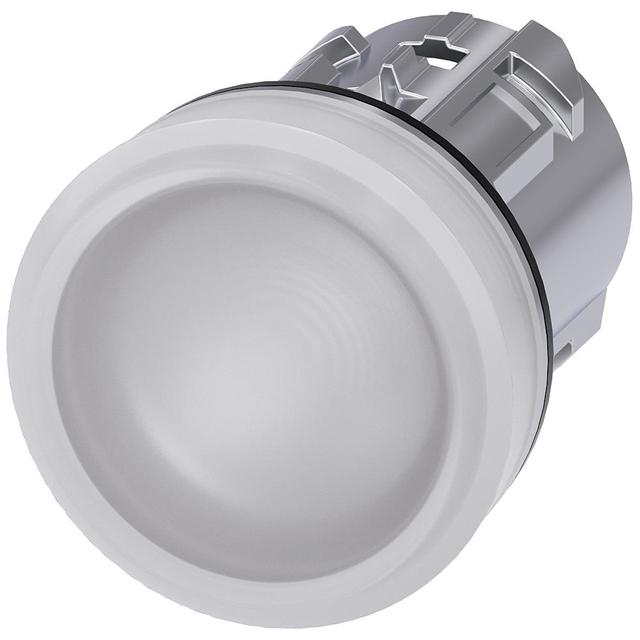

INDICATOR LIGHT. WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A6X30141164

Active

Siemens

INDICATOR LIGHT. WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6X30141164

Ingress Protection	NEMA 1, IP67, NEMA 12, NEMA 2, NEMA 4, IP69K, NEMA 3, IP69, IP66, NEMA 13, NEMA 4X, NEMA 3R
Lamp Color	White
Lens Color	White
Lens Size [diameter]	22 mm
Lens Transparency	Diffused
Panel Cutout Dimensions	0.88 in
Panel Cutout Dimensions	22.3 mm
Panel Cutout Shape	Round
Type	LED

A6X30141 Series

Part	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Lens Size [diameter]	Lens Transparency	Ingress Protection	Panel Cutout Shape	Lens Color	Millicandela Rating [Max]	Millicandela Rating [Min]	Voltage	Ratings	Termination Style
Siemens A6X30141265	LED	1.2 in	30.5 mm	Yellow	30 mm	Diffused	NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round	Yellow
Siemens A6X30141148	LED	0.88 in	22.3 mm	Yellow	22 mm	Diffused	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round	Yellow
Siemens A6X30141976	LED	0.88 in	22.3 mm	Clear	22 mm	Clear	IP20 IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round	Colorless	1400 mcd	900 mcd	24 V	AC/DC	Spring Terminal
Siemens A6X30141262	LED	1.2 in	30.5 mm	Yellow	30 mm	Diffused	NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round	Yellow
Siemens A6X30141158	LED	0.88 in	22.3 mm	Blue	22 mm	Diffused	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round	Blue
Siemens A6X30141271	LED	1.2 in	30.5 mm	Blue	30 mm	Diffused	NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round	Blue
Siemens A6X30141153	LED	0.88 in	22.3 mm	Green	22 mm	Diffused	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round	Green
Siemens A6X30141149	LED	0.88 in	22.3 mm	Yellow	22 mm	Diffused	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round	Yellow
Siemens A6X30141276	LED			Clear	30 mm	Clear		Round	Colorless
Siemens A6X30141142	LED	0.88 in	22.3 mm	Amber	22 mm	Diffused	IP66 IP67 IP69 IP69K NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X	Round	Amber

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 35.48
		10	$ 27.78
		100	$ 24.27

Description

General part information

A6X30141 Series

LED Panel Indicator White Diffused

Documents

Technical documentation and resources
