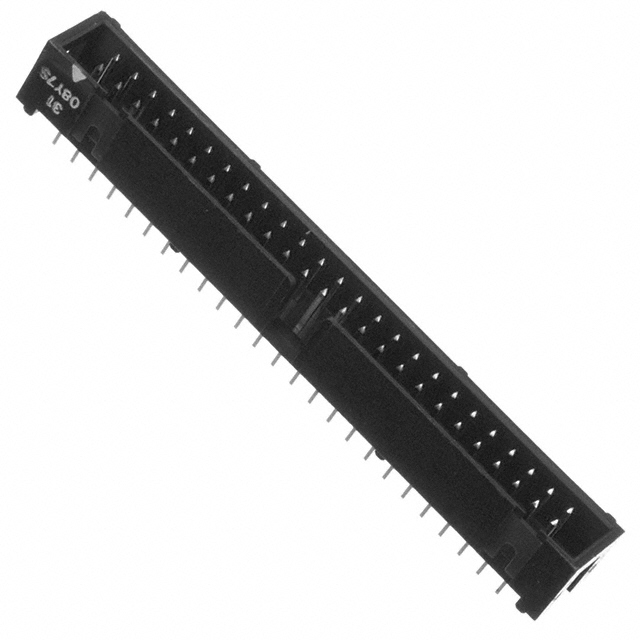

XG4C-5071

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

XG4C-5071

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XG4C-5071

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass, Nickel
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mated Stacking Heights	10.1 mm, 19 mm, 20.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.48 in
Overall Contact Length	12.19 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	300 VDC

XG4C Series

Part	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating [x]	Number of Positions Loaded	Fastening Type	Number of Rows	Features	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post [x]	Contact Shape	Mounting Type	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Number of Positions	Connector Type	Contact Type	Contact Finish - Mating	Voltage Rating	Insulation Material	Current Rating (Amps)	Style	Insulation Color	Termination	Overall Contact Length	Overall Contact Length	Mated Stacking Heights
Omron Electronics Inc-EMC Div XG4C-1074	UL94 V-0	2 çm	78.7 çin	2.54 mm	0.1 in	6.1 mm	0.24 in	All	Push-Pull	2	Keying Slot	8.2 mm	0.323 in	0.15 µm	5.9 µin	Brass Nickel	0.1 in	2.54 mm	3.2 mm	0.126 in	Square	Through Hole Right Angle	Tin	105 ░C	-55 °C	Shrouded - 4 Wall	10	Header	Male Pin	Gold	300 VDC	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Board to Board Cable	Black	Solder
Omron Electronics Inc-EMC Div XG4C-6074	UL94 V-0	2 çm	78.7 çin	2.54 mm	0.1 in	6.1 mm	0.24 in	All	Push-Pull	2	Keying Slot	8.2 mm	0.323 in	0.15 µm	5.9 µin	Brass Nickel	0.1 in	2.54 mm	3.2 mm	0.126 in	Square	Through Hole Right Angle	Tin	105 ░C	-55 °C	Shrouded - 4 Wall	60	Header	Male Pin	Gold	300 VDC	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Board to Board Cable	Black	Solder
Omron Electronics Inc-EMC Div XG4C-3431	UL94 V-0	2 çm	78.7 çin	2.54 mm	0.1 in	6.1 mm	0.24 in	All	Push-Pull	2	Keying Slot	8.51 mm	0.335 "	0.15 µm	5.9 µin	Brass Nickel	0.1 in	2.54 mm	3.2 mm	0.126 in	Square	Through Hole	Tin	105 ░C	-55 °C	Shrouded - 4 Wall	34	Header	Male Pin	Gold	300 VDC	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Board to Board Cable	Black	Solder	0.48 in	12.19 mm	10.1 mm 19 mm 20.2 mm
Omron Electronics Inc-EMC Div XG4C-5071	UL94 V-0	2 çm	78.7 çin	2.54 mm	0.1 in	6.1 mm	0.24 in	All	Push-Pull	2	Keying Slot	8.51 mm	0.335 "	0.15 µm	5.9 µin	Brass Nickel	0.1 in	2.54 mm	3.2 mm	0.126 in	Square	Through Hole	Tin	105 ░C	-55 °C	Shrouded - 4 Wall	50	Header	Male Pin	Gold	300 VDC	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Board to Board Cable	Black	Solder	0.48 in	12.19 mm	10.1 mm 19 mm 20.2 mm
Omron Electronics Inc-EMC Div XG4C-3031	UL94 V-0	2 çm	78.7 çin	2.54 mm	0.1 in	6.1 mm	0.24 in	All	Push-Pull	2	Keying Slot	8.51 mm	0.335 "	0.15 µm	5.9 µin	Brass Nickel	0.1 in	2.54 mm	3.2 mm	0.126 in	Square	Through Hole	Tin	105 ░C	-55 °C	Shrouded - 4 Wall	30	Header	Male Pin	Gold	300 VDC	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Board to Board Cable	Black	Solder	0.48 in	12.19 mm	10.1 mm 19 mm 20.2 mm
Omron Electronics Inc-EMC Div XG4C-5031	UL94 V-0	2 çm	78.7 çin	2.54 mm	0.1 in	6.1 mm	0.24 in	All	Push-Pull	2	Keying Slot	8.51 mm	0.335 "	0.15 µm	5.9 µin	Brass Nickel	0.1 in	2.54 mm	3.2 mm	0.126 in	Square	Through Hole	Tin	105 ░C	-55 °C	Shrouded - 4 Wall	50	Header	Male Pin	Gold	300 VDC	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Board to Board Cable	Black	Solder	0.48 in	12.19 mm	10.1 mm 19 mm 20.2 mm
Omron Electronics Inc-EMC Div XG4C-4034	UL94 V-0	2 çm	78.7 çin	2.54 mm	0.1 in	6.1 mm	0.24 in	All	Push-Pull	2	Keying Slot	8.2 mm	0.323 in	0.15 µm	5.9 µin	Brass Nickel	0.1 in	2.54 mm	3.2 mm	0.126 in	Square	Through Hole Right Angle	Tin	105 ░C	-55 °C	Shrouded - 4 Wall	40	Header	Male Pin	Gold	300 VDC	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Board to Board Cable	Black	Solder
Omron Electronics Inc-EMC Div XG4C-2631	UL94 V-0	2 çm	78.7 çin	2.54 mm	0.1 in	6.1 mm	0.24 in	All	Push-Pull	2	Keying Slot	8.51 mm	0.335 "	0.15 µm	5.9 µin	Brass Nickel	0.1 in	2.54 mm	3.2 mm	0.126 in	Square	Through Hole	Tin	105 ░C	-55 °C	Shrouded - 4 Wall	26	Header	Male Pin	Gold	300 VDC	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Board to Board Cable	Black	Solder	0.48 in	12.19 mm	10.1 mm 19 mm 20.2 mm
Omron Electronics Inc-EMC Div XG4C-1431	UL94 V-0	2 çm	78.7 çin	2.54 mm	0.1 in	6.1 mm	0.24 in	All	Push-Pull	2	Keying Slot	8.51 mm	0.335 "	0.15 µm	5.9 µin	Brass Nickel	0.1 in	2.54 mm	3.2 mm	0.126 in	Square	Through Hole	Tin	105 ░C	-55 °C	Shrouded - 4 Wall	14	Header	Male Pin	Gold	300 VDC	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Board to Board Cable	Black	Solder	0.48 in	12.19 mm	10.1 mm 19 mm 20.2 mm
Omron Electronics Inc-EMC Div XG4C-6474	UL94 V-0	2 çm	78.7 çin	2.54 mm	0.1 in	6.1 mm	0.24 in	All	Push-Pull	2	Keying Slot	8.2 mm	0.323 in	0.15 µm	5.9 µin	Brass Nickel	0.1 in	2.54 mm	3.2 mm	0.126 in	Square	Through Hole Right Angle	Tin	105 ░C	-55 °C	Shrouded - 4 Wall	64	Header	Male Pin	Gold	300 VDC	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Board to Board Cable	Black	Solder
