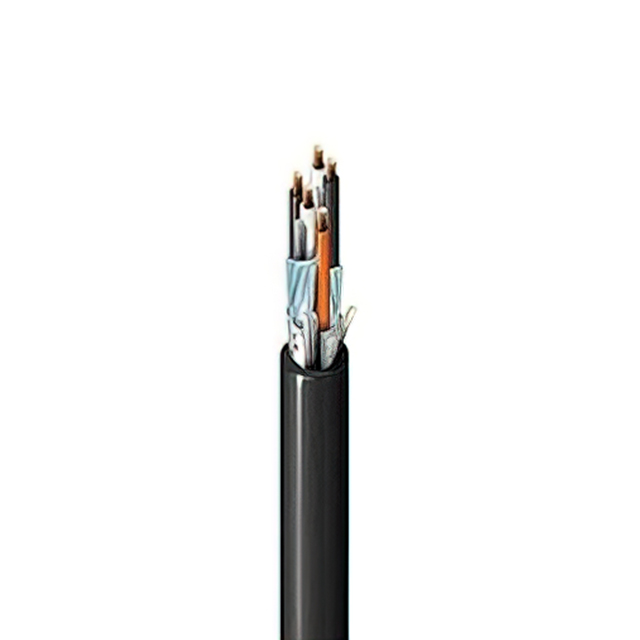

1076A 0107500

Active

Belden Inc.

MULTI-PAIR 9COND 20/22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 9COND 20/22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1076A 0107500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	30, 7 Strands, 28 AWG (2)
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	11.28 mm
Jacket (Insulation) Diameter [diameter]	0.444 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Black
Length [x]	7500 ft
Length [x]	2286 m
Number of Conductors	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	22, 20

MULTI-PAIR 9COND 20/22AWG

Part	Shield Material	Conductor Strand	Jacket Color	Ratings	Length [x]	Length [x]	Number of Conductors	Conductor Material	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Shield Coverage	Jacket (Insulation) Material	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 1076A 0107500	Aluminum	7 Strands, 28 AWG (2), 30	Black	UL Style 2464	7500 ft	2286 m	9	Copper, Bare	Foil	11.28 mm	0.444 in	Poly-Vinyl Chloride (PVC)	100 %	Poly-Vinyl Chloride (PVC)	Drain Wire, Rip Cord	1.346 mm	0.053 in	Multi-Pair	20, 22	-30 ░C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	7500	$ 2.88

General part information

9 (4.5 Pair) Conductor Multi-Pair Cable Black 20 AWG, 22 AWG Foil 7500' (2286.0m)
