Description
General part information

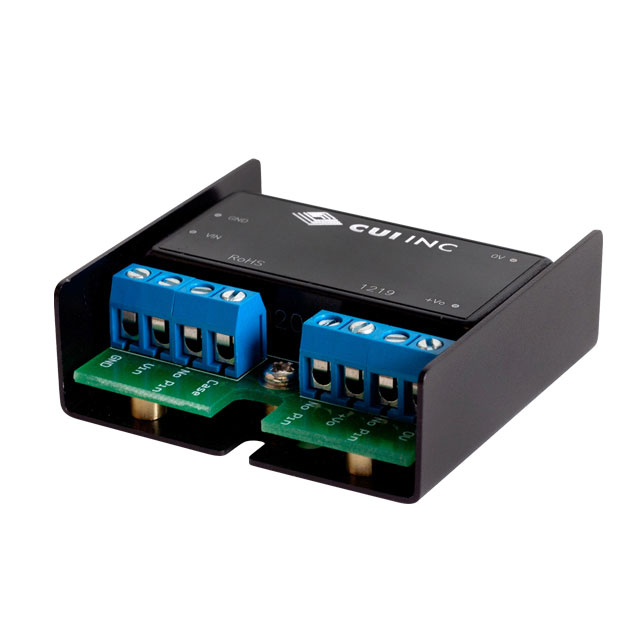

VYB10W-Q48-S12-T
Enclosed DC DC Converter 1 Output 12V 833mA 72V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VYB10W-Q48-S12-T |
|---|---|
| Current - Output (Max) | 833 mA |
| Efficiency | 82 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 10 W |
| Size / Dimension Height | 0.75 in |
| Size / Dimension Length | 2.06 in |
| Size / Dimension Width | 2.17 in |
| Type | Enclosed |
| Voltage - Input (Max) | 72 V |
| Voltage - Input (Min) | 18 V |
| Voltage - Output 1 | 12 V |
