27SR1600315W
ActiveEssentra Components

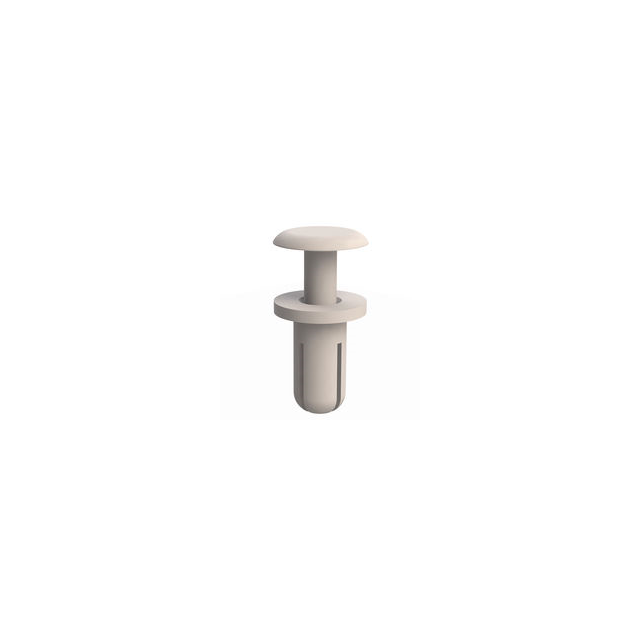

SNAP RIVET NYLON WHITE
27SR1600315W
ActiveEssentra Components
SNAP RIVET NYLON WHITE
Description
General part information
27SR1600315W
Snap Rivet 0.100" ~ 0.250" (2.54mm ~ 6.35mm) Grip Range Nylon
Technical Specifications
Parameters and characteristics for this part
| Specification | 27SR1600315W |
|---|---|
| Color | White |
| Grip Range (Maximum) | 0.25 in |
| Grip Range (Minimum) | 0.1 in |
| Head Diameter | 0.278 in |
| Head Height | 0.034 in |
| Hole Diameter (Maximum) | 0.169 in |
| Hole Diameter (Minimum) | 0.165 in |
| Material | Nylon |
| Rivet Length | 0.315 in |
| Type | Snap Rivet |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
