MFT-MT2000-NO.14-0-SP

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.014" BLACK FOOT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MFT-MT2000-NO.14-0-SP

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.014" BLACK FOOT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MFT-MT2000-NO.14-0-SP

Color	Black
Features	Strain Resistant
Inner Diameter - Recovered [diameter]	0.2 mm
Inner Diameter - Recovered [diameter]	0.008 "
Inner Diameter - Supplied [diameter]	0.014 in
Inner Diameter - Supplied [diameter]	0.36 mm
Length	Enter Number of Feet in Order Quantity
Length	762 m
Length	2500 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Recovered Wall Thickness	0.006 "
Recovered Wall Thickness	0.15 mm
Shrink Temperature	110 °C
Shrinkage Ratio [Max]	2.5
Shrinkage Ratio [Min]	1
Spool Size	2500 ft
Spool Size	762 m
Type	Tubing, Flexible

MFT Series

Part	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio [Max]	Shrinkage Ratio [Min]	Features	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Shrink Temperature	Color	Length	Spool Size	Spool Size	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Length [x]	Length [x]	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]
TE Connectivity Raychem Cable Protection MFT-MT2000-NO.2-0-SP	0.006 "	0.15 mm	2.5	1	Strain Resistant	Tubing Flexible	0.3 mm	0.012 in	Polyolefin (PO)	110 °C	Black	Enter Number of Feet in Order Quantity	609.6 m	2000 '	-40 °C	105 ░C
TE Connectivity Raychem Cable Protection MFT-MT2000-NO.14-0-SP	0.006 "	0.15 mm	2.5	1	Strain Resistant	Tubing Flexible	0.008 "		Polyolefin (PO)	110 °C	Black	Enter Number of Feet in Order Quantity	762 m	2500 ft	-40 °C	105 ░C	762 m	2500 ft	0.2 mm	0.014 in	0.36 mm
TE Connectivity Raychem Cable Protection MFT-MT2000-NO.1-0-SP			2.5	1	Strain Resistant	Tubing Flexible	0.18 mm	0.007 in	Polyolefin (PO)	110 °C	Black				-40 °C	105 ░C	1828.8 m	6000 ft		0.014 in	0.36 mm	0.13 mm	0.005 "
TE Connectivity Raychem Cable Protection MFT-MT2000-NO.2-X-SP	0.006 "	0.15 mm	2.5	1	Strain Resistant	Tubing Flexible	0.3 mm	0.012 in	Polyolefin (PO)	110 °C	Clear				-40 °C	105 ░C
TE Connectivity Raychem Cable Protection MFT-MT2000-NO.65-X-SP	0.013 in	0.33 mm	2.5	1	Strain Resistant	Tubing Flexible	0.25 mm	0.01 in	Polyolefin (PO)	110 °C	Clear	Enter Number of Feet in Order Quantity	609.6 m	2000 '	-40 °C	105 ░C				0.025 in	0.64 mm			609.6 m	2000 ft
TE Connectivity Raychem Cable Protection MFT-MT2000-NO.33-0-SP			2.5	1	Strain Resistant	Tubing Flexible	0.43 mm	0.017 in	Polyolefin (PO)	110 °C	Black				-40 °C	105 ░C				0.045 "	1.14 mm			609.6 m	2000 ft	0.18 mm	0.007 in
TE Connectivity Raychem Cable Protection MFT-MT1000-NO.2-X-SP	0.006 "	0.15 mm	2.5	1	Abrasion and Cut Resistant Fluid Resistant Strain Resistant	Tubing Semi Rigid	0.3 mm	0.012 in	Fluoropolymer	155 °C	Clear				-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 18.47
		2	$ 16.98
		3	$ 16.18
		5	$ 15.21
		7	$ 14.60
		10	$ 13.99
		25	$ 12.52
		50	$ 11.52
		100	$ 10.67
	Spool	2500	$ 8.28

Description

General part information

MFT Series

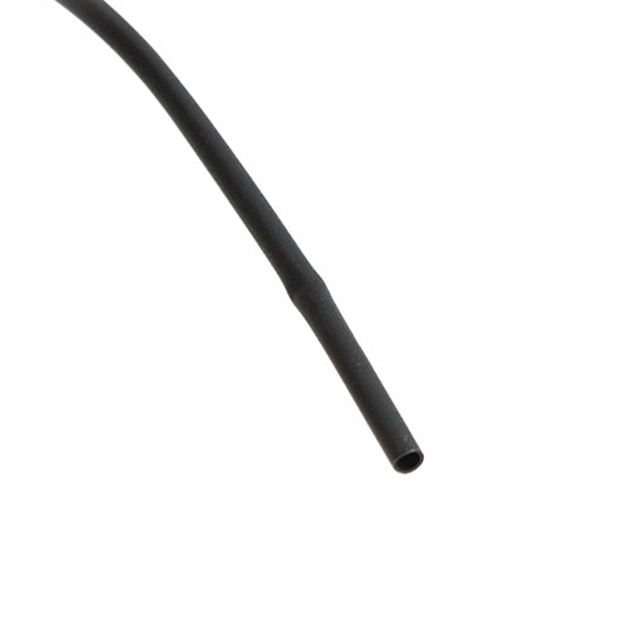

Heat Shrink Tubing, Flexible 0.014" (0.36mm) 2.5 to 1 Black Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources
