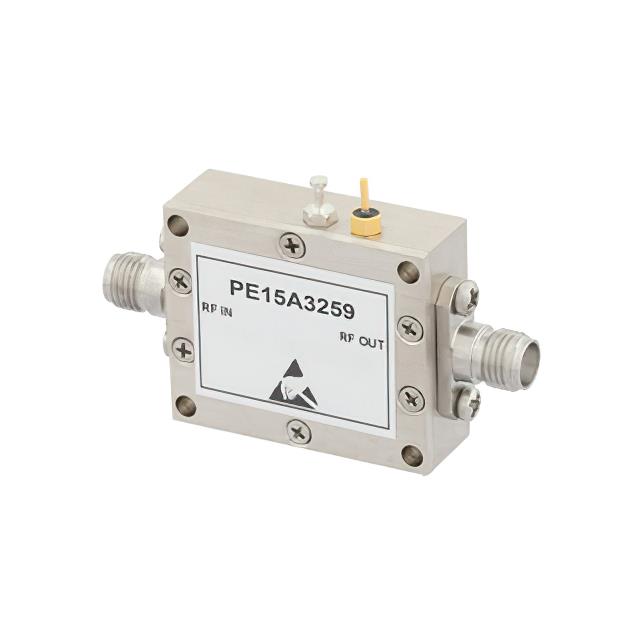

PE15A3259
ActivePasternack
2.5 DB NF, 22 DBM P1DB, 6 GHZ TO
PE15A3259
ActivePasternack
2.5 DB NF, 22 DBM P1DB, 6 GHZ TO
Description
General part information
PE15A3259
RF Amplifier IC General Purpose 6GHz ~ 18GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A3259 |
|---|---|
| Current - Supply | 280 mA |
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 6 GHz |
| Gain | 41 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 2.5 dB |
| P1dB | 22 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 10 VDC |
