62820B04101
ActiveDLK Electronics
DP AF RA SMT TYPE PIN=1.45 DIP=2
62820B04101
ActiveDLK Electronics
DP AF RA SMT TYPE PIN=1.45 DIP=2
Description
General part information

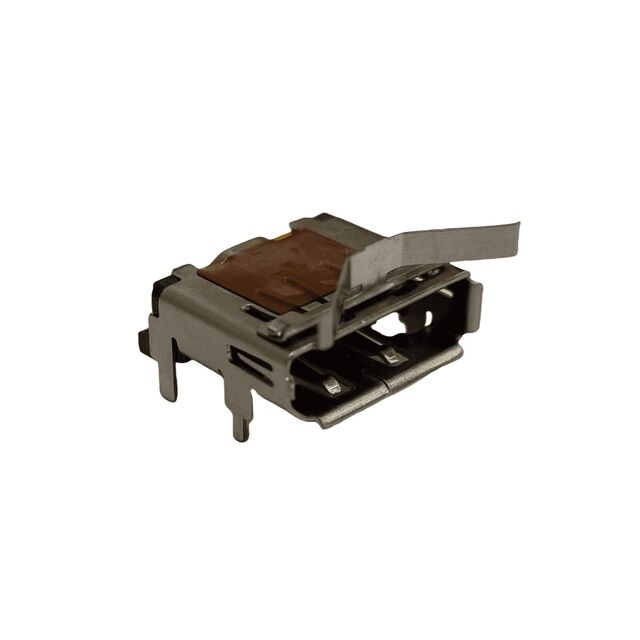

62820B04101
DisplayPort Display Port 1.4 Receptacle Connector 20 Position Surface Mount, Right Angle; Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 62820B04101 |
|---|---|
| Connector Type | DisplayPort |
| Contact Finish | Gold |
| Current Rating | 0.5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 cycles |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 20 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Shell/Shielding Material | Steel (SUS) |
| Shielding | Shielded |
| Specifications | Display Port 1.4 |
| Termination | PC Board, Solder |
| Voltage - Rated | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
