CL-827-P215-PC

Active

Intematix Corporation

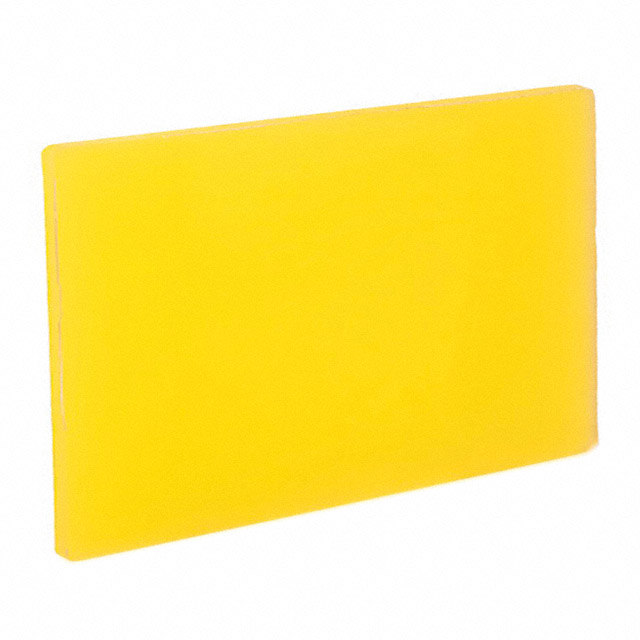

CHROMALIT PANEL 80CRI 305X215MM

Search across all available documentation for this part.

Active

Intematix Corporation

CHROMALIT PANEL 80CRI 305X215MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CL-827-P215-PC	CL-827 Series

CCT (K)	2700 K	2700 K
Conversion Efficacy (lm/Wrad)(typ)	190 lm/Wrad	165 - 190 lm/Wrad
CRI (Color Rendering Index)	80	80
Lens Size	-	9.5 - 135 mm
Lens Size [x]	305 mm	152.5 - 305 mm
Lens Size [y]	215 mm	12.5 - 215 mm
Lens Style	Rectangle with Flat Top	Round with Domed Top, Square with Flat Top, Rectangle with Flat Top
Viewing Angle	115 °	115 °

CHROMALIT ROUND 80CRI 45MM DIA

Part	Lens Size	CCT (K)	CRI (Color Rendering Index)	Conversion Efficacy (lm/Wrad)(typ)	Viewing Angle	Lens Style	Lens Size [x]	Lens Size [y]
Intematix Corporation CL-827-SR-PC	45 mm	2700 K	80	180 lm/Wrad	115 °
Intematix Corporation CL-827-DOM60-PC	37 mm	2700 K	80	165 lm/Wrad		Round with Domed Top
Intematix Corporation CL-827-ELP60-PC	23.5 mm	2700 K	80	165 lm/Wrad		Round with Domed Top
Intematix Corporation CL-827-ELP40-PC	20 mm	2700 K	80	165 lm/Wrad		Round with Domed Top
Intematix Corporation CL-827-R23-PC	22.5 mm	2700 K	80	180 lm/Wrad	115 °
Intematix Corporation CL-827-S95-PC	95 mm	2700 K	80	190 lm/Wrad	115 °	Square with Flat Top
Intematix Corporation CL-827-ELP30-PC	14.5 mm	2700 K	80	165 lm/Wrad		Round with Domed Top
Intematix Corporation CL-827-S65-PC	65 mm	2700 K	80	190 lm/Wrad	115 °	Square with Flat Top
Intematix Corporation CL-827-S120-PC	120 mm	2700 K	80	190 lm/Wrad	115 °	Square with Flat Top
Intematix Corporation CL-827-L152-XT		2700 K	80	190 lm/Wrad	115 °	Rectangle with Flat Top	152.5 mm	22.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 69.72

General part information

ChromaLit™ Panel Remote Phospher Light Source 80 CRI 2700.0 115° Rectangle with Flat Top 305mm x 215mm
