PEWAN1166
ActivePasternack

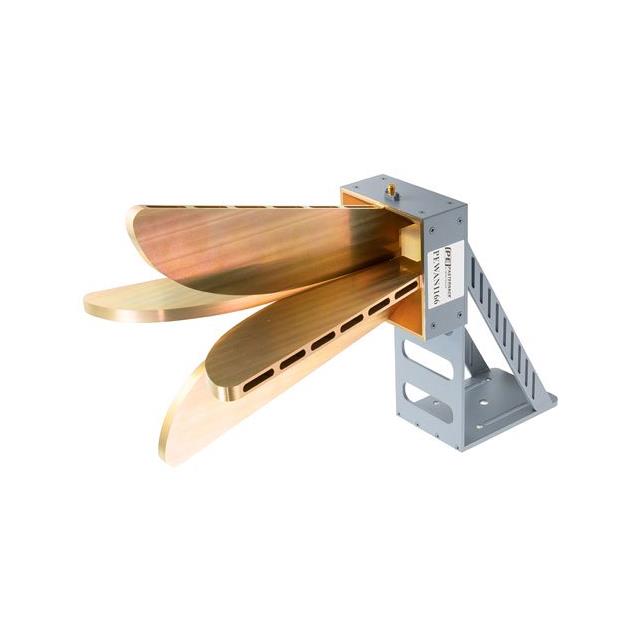

BROADBAND HORN ANTENNA, DUAL POL
PEWAN1166
ActivePasternack
BROADBAND HORN ANTENNA, DUAL POL
Description
General part information
PEWAN1166
RF ANTENNA General Purpose Horn SMA Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWAN1166 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Frequency (Center/Band) | 1.9 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 3 GHz |
| Frequency Range (Min) | 800 MHz |
| Gain | 7 dBi |
| Height (Max) | 10.71 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination Type | SMA Female |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
