HEP.2F.319.CLNP

Active

LEMO

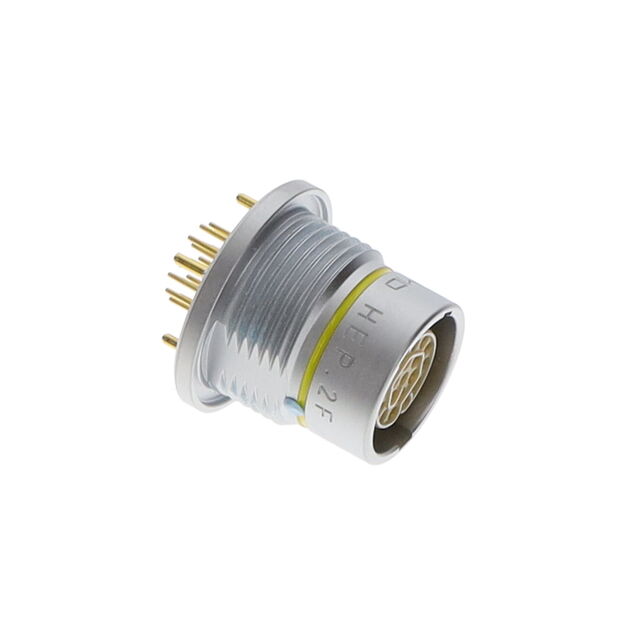

CONN RCPT FMALE 19POS GOLD SLDR

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 19POS GOLD SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Receptacle, Female Sockets Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	HEP.2F.319.CLNP	HEP.2F Series

Applications	Aerospace	Aerospace
Color	Silver	Silver, Gray
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	5 A	5 - 10 A
Fastening Type	Push-Pull	Push-Pull
Features	Potted	Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	19	8 - 19
Operating Temperature [Max]	150 °C	100 - 150 °C
Operating Temperature [Min]	-50 °C	-50 - -15 °C
Orientation	P	P
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome, Nickel
Shell Material	Brass	Brass, Aluminum Alloy
Shell Size - Insert	319	308 - 319
Shielding	Shielded	Shielded
Termination	Solder	Solder

CONN RCPT FMALE 12POS GOLD SLDR

Part	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Material Flammability Rating	Shielding	Contact Finish - Mating	Features	Applications	Shell Finish	Contact Material	Mounting Feature	Fastening Type	Connector Type	Orientation	Insert Material	Shell Size - Insert	Primary Material	Ingress Protection	Termination	Current Rating (Amps)
LEMO HEP.2F.312.CLNP	Brass	150 °C	-50 °C	Silver	12	59 Áin	1.5 Ám	Panel Mount, Through Hole	UL94 V-0	Shielded	Gold	Potted	Aerospace	Chrome	Bronze	Bulkhead - Front Side Nut	Push-Pull	Receptacle, Female Sockets	P	Polyetheretherketone (PEEK)	312	Metal	IP68 - Dust Tight, Waterproof	Solder	7 A
LEMO HEP.2F.308.XLNP	Aluminum Alloy	100 °C	-15 °C	Gray	8	59 Áin	1.5 Ám	Panel Mount, Through Hole	UL94 V-0	Shielded	Gold	Potted	Aerospace	Nickel	Bronze	Bulkhead - Front Side Nut	Push-Pull	Receptacle, Female Sockets	P	Polyetheretherketone (PEEK)	308	Metal	IP68 - Dust Tight, Waterproof	Solder	10 A
LEMO HEP.2F.319.CLNP	Brass	150 °C	-50 °C	Silver	19	59 Áin	1.5 Ám	Panel Mount, Through Hole	UL94 V-0	Shielded	Gold	Potted	Aerospace	Chrome	Bronze	Bulkhead - Front Side Nut	Push-Pull	Receptacle, Female Sockets	P	Polyetheretherketone (PEEK)	319	Metal	IP68 - Dust Tight, Waterproof	Solder	5 A
