1677636
ObsoletePhoenix Contact

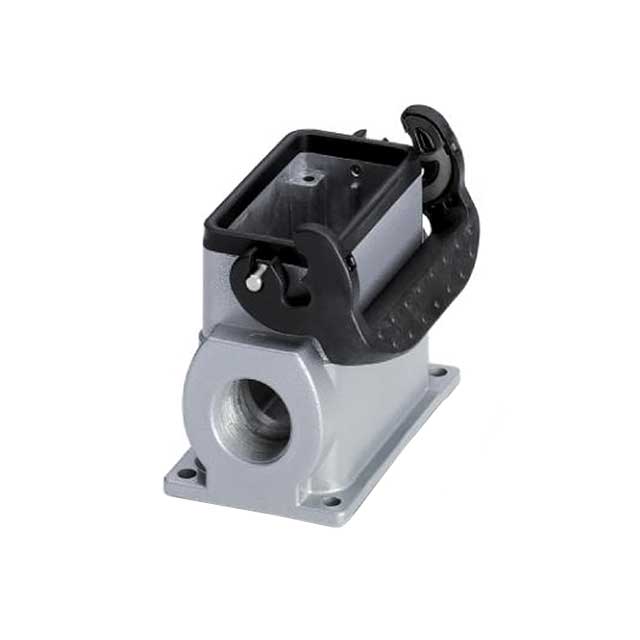

CONN BASE SIDE ENTRY SZB10 PG21
1677636
ObsoletePhoenix Contact
CONN BASE SIDE ENTRY SZB10 PG21
Description
General part information
1677636
Base - Box Mount Connector Side Entry PG21 B10 IP65 - Dust Tight, Water Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | 1677636 |
|---|---|
| Connector Type | Base - Box Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B10 |
| Size / Dimension Height | 2.913 in |
| Size / Dimension Length | 3.661 in |
| Size / Dimension Width | 2.047 in |
| Style | Side Entry |
| Thread Size | PG21 |
