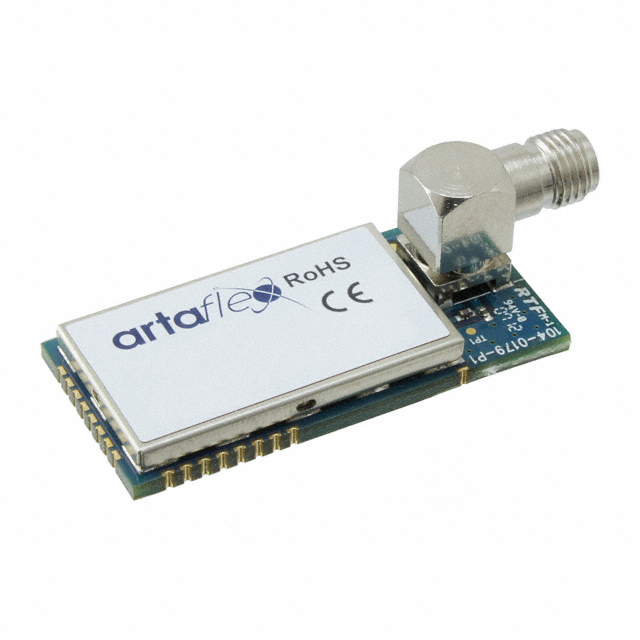

AW24TH-SR

Active

Artaflex Inc.

RF TXRX MODULE 802.15.4SMA SMD

Search across all available documentation for this part.

Active

Artaflex Inc.

RF TXRX MODULE 802.15.4SMA SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AW24TH-SR	AW24TH Series

Antenna Type	Antenna Not Included, SMA	Antenna Not Included, U.FL, Antenna Not Included, SMA, Integrated, Chip
Current - Receiving	24 mA	24 mA
Current - Transmitting	29 mA	29 mA
Data Rate	250 KBd	250 KBd
Frequency	2.4 GHz	2.4 GHz
Memory Size [custom]	256 kB	256 kB
Memory Size [custom]	8 kB	8 kB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	24.2 dBm	24.2 dBm
Protocol	Zigbee®	Zigbee®
RF Family/Standard	802.15.4	802.15.4
Sensitivity	-105 dBm	-105 dBm
Serial Interfaces	UART, SPI	UART, SPI
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.7 V	2.7 V

802.15.4 SOC 2480MHZ 115.2KBPS 24-PIN SMD MODULE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Receiving	RF Family/Standard	Protocol	Sensitivity	Current - Transmitting	Package / Case	Memory Size [custom]	Memory Size [custom]	Mounting Type	Antenna Type	Power - Output	Data Rate	Frequency
Artaflex Inc. AW24TH-U-SM	85 °C	-40 °C	SPI, UART	2.7 V	3.6 V	24 mA	802.15.4	Zigbee®	-105 dBm	29 mA	Module	256 kB	8 kB	Surface Mount	Antenna Not Included, U.FL	24.2 dBm	250 KBd	2.4 GHz
Artaflex Inc. AW24TH-SR	85 °C	-40 °C	SPI, UART	2.7 V	3.6 V	24 mA	802.15.4	Zigbee®	-105 dBm	29 mA	Module	256 kB	8 kB	Surface Mount	Antenna Not Included, SMA	24.2 dBm	250 KBd	2.4 GHz
Artaflex Inc. AW24TH-C-SM	85 °C	-40 °C	SPI, UART	2.7 V	3.6 V	24 mA	802.15.4	Zigbee®	-105 dBm	29 mA	Module	256 kB	8 kB	Surface Mount	Integrated, Chip	24.2 dBm	250 KBd	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

802.15.4 Zigbee® Transceiver Module 2.4GHz Antenna Not Included, SMA Surface Mount
