CA45LD050K685T
ActiveNextGen Components
CAP. TANT. 50V 6.8UF 10% 2917
CA45LD050K685T
ActiveNextGen Components
CAP. TANT. 50V 6.8UF 10% 2917
Description
General part information
CA45LD050K685T

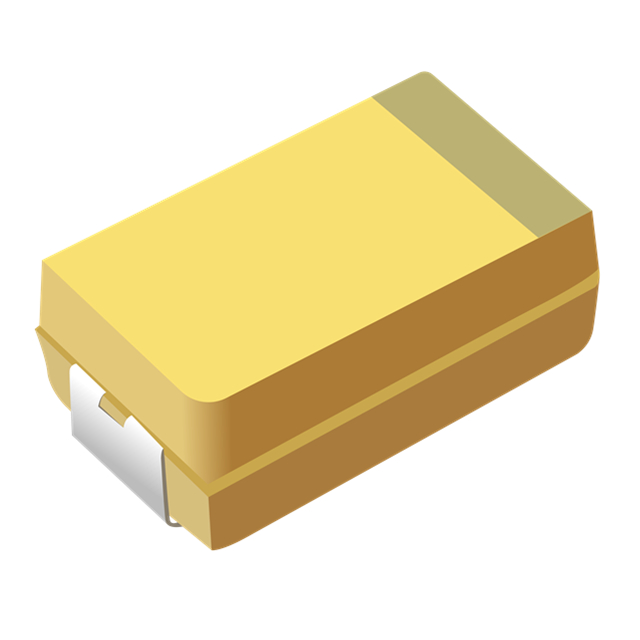

6.8 µF Molded Tantalum Capacitors 50 V 2917 (7343 Metric) 600mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CA45LD050K685T |
|---|---|
| Capacitance | 6.8 µF |
| ESR (Equivalent Series Resistance) | 600 mOhm |
| Features | General Purpose |
| Height - Seated (Max) | 0.122 in |
| Manufacturer Size Code | D |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.169 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 50 V |
