TDL107K006S1D-F
ObsoleteCornell Dubilier Knowles
CAP TANT 100UF 10% 6V RADIAL
TDL107K006S1D-F
ObsoleteCornell Dubilier Knowles
CAP TANT 100UF 10% 6V RADIAL
Description
General part information
TDL107K006S1D-F

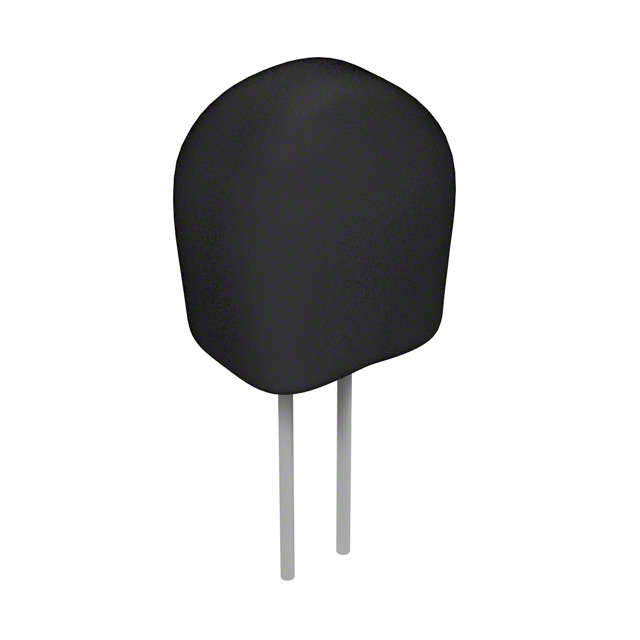

100 µF Conformal Coated Tantalum Capacitors 6 V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | TDL107K006S1D-F |
|---|---|
| Capacitance | 100 µF |
| Features | General Purpose |
| Height - Seated (Max) | 0.4 in |
| Lead Spacing | 0.1 in |
| Manufacturer Size Code | D |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Diameter | 0.34 in |
| Tolerance | 10 % |
| Type | Conformal Coated |
| Voltage - Rated | 6 VDC |
