11828-1GA

Active

Amphenol ICC

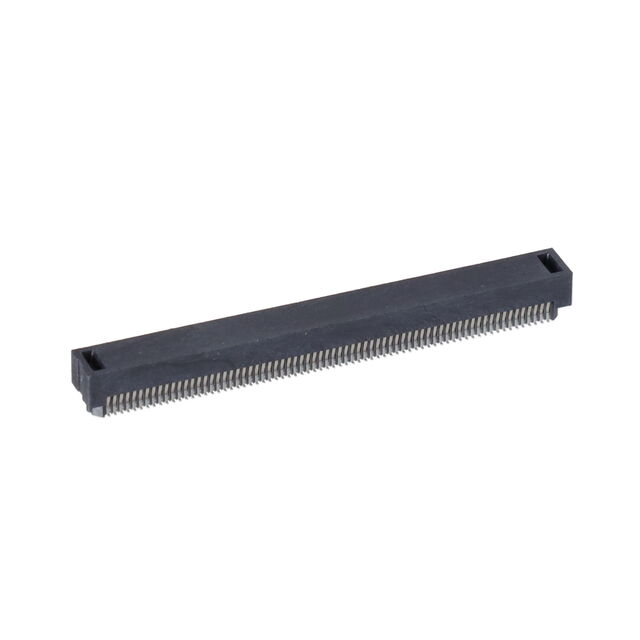

LYNX RECPT., 70 POSITION, W/CAP

Search across all available documentation for this part.

Active

Amphenol ICC

LYNX RECPT., 70 POSITION, W/CAP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11828-1GA	11828 Series

Connector Type	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts
Contact Finish	Gold	Gold
Features	Pick and Place, Board Guide	Pick and Place, Board Guide
Height Above Board [z]	3.2 mm	3.2 mm
Height Above Board [z]	0.126 in	0.126 in
Mounting Type	Surface Mount	Surface Mount
Number of Positions	280	120 - 280
Pitch [x]	0.6 mm	0.6 mm
Pitch [x]	0.024 in	0.024 in

LYNX RECPT., 70 POSITION, W/CAP

Part	Height Above Board [z]	Height Above Board [z]	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions	Contact Finish	Features
Amphenol ICC 11828-1GA	3.2 mm	0.126 in	Center Strip Contacts, Receptacle	0.6 mm	0.024 in	Surface Mount	280	Gold	Board Guide, Pick and Place
Amphenol ICC 11828-2CA	3.2 mm	0.126 in	Center Strip Contacts, Receptacle	0.6 mm	0.024 in	Surface Mount	120	Gold	Board Guide, Pick and Place

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

280 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
