MS110-10F-NS
ActiveMasach Tech Ltd.

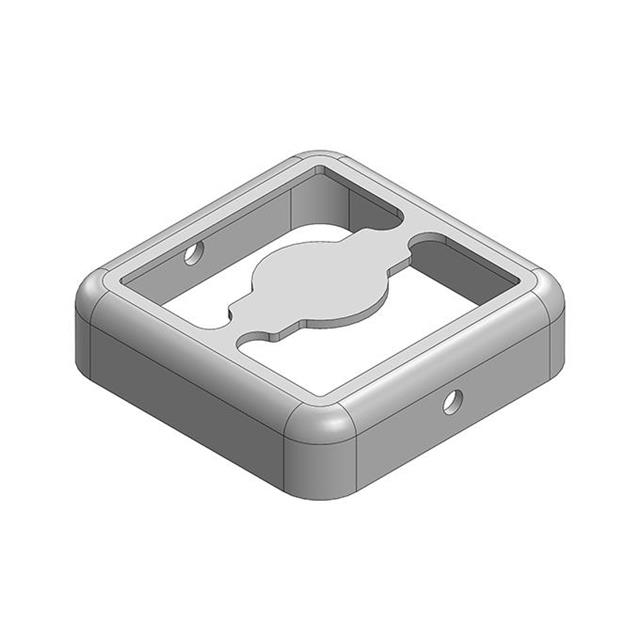

11 X 11 X 2.8MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD FRAME (NICKEL-SILVER); MATERIAL: NICKEL-SILVER; PACKAGE TYPE: TRAY
Deep-Dive with AI
Search across all available documentation for this part.
MS110-10F-NS
ActiveMasach Tech Ltd.
11 X 11 X 2.8MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD FRAME (NICKEL-SILVER); MATERIAL: NICKEL-SILVER; PACKAGE TYPE: TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS110-10F-NS |
|---|---|
| Height - Overall [z] | 2.8 mm |
| Height - Overall [z] | 0.11 in |
| Length - Overall [x] | 11 mm |
| Length - Overall [x] | 0.433 in |
| Mounting Type | Solder |
| Type | Frame |
| Width - Overall [x] | 11 mm |
| Width - Overall [x] | 0.433 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.67 | |
| 10 | $ 1.72 | |||
| 25 | $ 1.47 | |||
| 130 | $ 1.15 | |||
| 260 | $ 1.05 | |||
| 520 | $ 0.97 | |||
| 1040 | $ 0.90 | |||
| 2470 | $ 0.84 | |||
| 4940 | $ 0.79 | |||
Description
General part information
MS110 Series
RF Shield Frame 0.433" (11.00mm) X 0.433" (11.00mm) Solder
Documents
Technical documentation and resources
