WM073R,AL

Active

Serpac

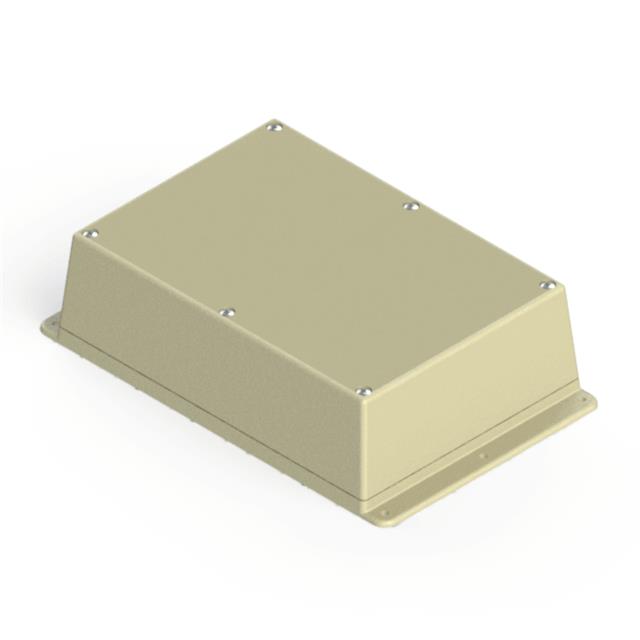

BOX ABS ALMOND 6.88"L X 4.88"W

Deep-Dive with AI

Search across all available documentation for this part.

WM073R,AL

Active

Serpac

BOX ABS ALMOND 6.88"L X 4.88"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WM073R,AL	WM073 Series

Area (L x W)	33.6 in²	33.6 in²
Area (L x W)	217 cm²	217 cm²
Area (L x W)	-	217 cm˛
Area (L x W)	-	33.6 in˛
Color	Almond	Gray, Almond, Black
Container Type	Box	Box
Design	Cover Included	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access	PCB Supports, Wall Mount, Mounting Flange, Front Access
Height [z]	2.1 in	2.1 in
Height [z]	53.34 mm	53.34 mm
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension [x]	174.75 mm	174.75 mm
Size / Dimension [x]	6.88 in	6.88 in
Size / Dimension [y]	123.95 mm	123.95 mm
Size / Dimension [y]	4.88 in	4.88 in
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	0.436 lb	0.436 lb
Weight	197.77 g	197.77 g

WM073 Series

BOX ABS GRAY 6.88"L X 4.88"W

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W)	Area (L x W)	Container Type	Color	Material Flammability Rating	Weight	Weight	Material	Thickness	Thickness	Height [z]	Height [z]	Design	Ratings	Features	Area (L x W) [custom]	Area (L x W) [custom]
Serpac WM073,GY	123.95 mm	174.75 mm	4.88 in	6.88 in	33.6 in²	217 cm²	Box	Gray	UL94 HB	0.436 lb	197.77 g	Plastic, ABS	2.54 mm	0.1 in	2.1 in	53.34 mm	Cover Included	IP40, NEMA 1	Mounting Flange, PCB Supports, Wall Mount
Serpac WM073I,GY	123.95 mm	174.75 mm	4.88 in	6.88 in			Box	Gray	UL94 HB	0.436 lb	197.77 g	Plastic, ABS	2.54 mm	0.1 in	2.1 in	53.34 mm	Cover Included	IP40, NEMA 1	Mounting Flange, PCB Supports, Wall Mount	217 cm˛	33.6 in˛
Serpac WM073RI,GY	123.95 mm	174.75 mm	4.88 in	6.88 in	33.6 in²	217 cm²	Box	Gray	UL94 HB	0.436 lb	197.77 g	Plastic, ABS	2.54 mm	0.1 in	2.1 in	53.34 mm	Cover Included	IP40, NEMA 1	Front Access, Mounting Flange, PCB Supports, Wall Mount
Serpac WM073,AL	123.95 mm	174.75 mm	4.88 in	6.88 in	33.6 in²	217 cm²	Box	Almond	UL94 HB	0.436 lb	197.77 g	Plastic, ABS	2.54 mm	0.1 in	2.1 in	53.34 mm	Cover Included	IP40, NEMA 1	Mounting Flange, PCB Supports, Wall Mount
Serpac WM073,BK	123.95 mm	174.75 mm	4.88 in	6.88 in	33.6 in²	217 cm²	Box	Black	UL94 HB	0.436 lb	197.77 g	Plastic, ABS	2.54 mm	0.1 in	2.1 in	53.34 mm	Cover Included	IP40, NEMA 1	Mounting Flange, PCB Supports, Wall Mount
Serpac WM073RI,AL	123.95 mm	174.75 mm	4.88 in	6.88 in			Box	Almond	UL94 HB	0.436 lb	197.77 g	Plastic, ABS	2.54 mm	0.1 in	2.1 in	53.34 mm	Cover Included	IP40, NEMA 1	Front Access, Mounting Flange, PCB Supports, Wall Mount	217 cm˛	33.6 in˛
Serpac WM073R,GY	123.95 mm	174.75 mm	4.88 in	6.88 in	33.6 in²	217 cm²	Box	Gray	UL94 HB	0.436 lb	197.77 g	Plastic, ABS	2.54 mm	0.1 in	2.1 in	53.34 mm	Cover Included	IP40, NEMA 1	Front Access, Mounting Flange, PCB Supports, Wall Mount
Serpac WM073RI,BK	123.95 mm	174.75 mm	4.88 in	6.88 in	33.6 in²	217 cm²	Box	Black	UL94 HB	0.436 lb	197.77 g	Plastic, ABS	2.54 mm	0.1 in	2.1 in	53.34 mm	Cover Included	IP40, NEMA 1	Front Access, Mounting Flange, PCB Supports, Wall Mount
Serpac WM073I,BK	123.95 mm	174.75 mm	4.88 in	6.88 in			Box	Black	UL94 HB	0.436 lb	197.77 g	Plastic, ABS	2.54 mm	0.1 in	2.1 in	53.34 mm	Cover Included	IP40, NEMA 1	Mounting Flange, PCB Supports, Wall Mount	217 cm˛	33.6 in˛
Serpac WM073I,AL	123.95 mm	174.75 mm	4.88 in	6.88 in			Box	Almond	UL94 HB	0.436 lb	197.77 g	Plastic, ABS	2.54 mm	0.1 in	2.1 in	53.34 mm	Cover Included	IP40, NEMA 1	Mounting Flange, PCB Supports, Wall Mount	217 cm˛	33.6 in˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.84

Description

General part information

WM073 Series

Box Plastic, ABS Almond Cover Included 6.880" L x 4.880" W (174.75mm x 123.95mm) X 2.100" (53.34mm)

Documents

Technical documentation and resources

No documents available
