1-1337611-0

Active

TE Connectivity AMP Connectors

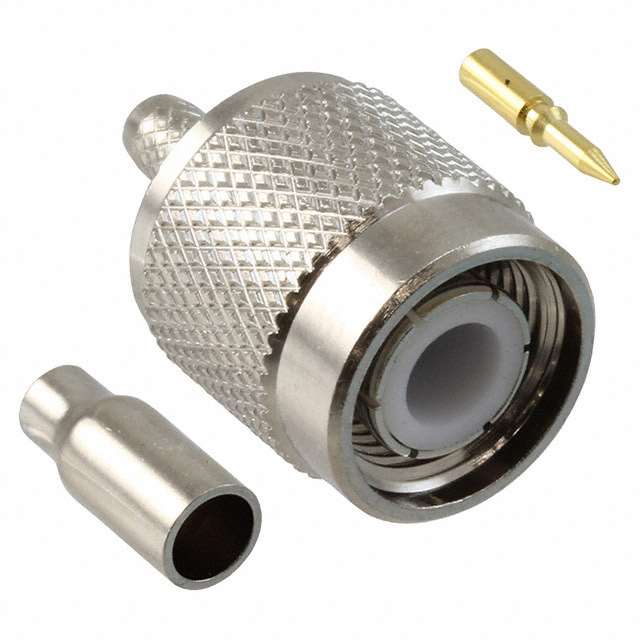

CONN TNC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN TNC PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337611-0

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174A, 316, 188A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs, 1 pcs
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

CONN TNC PLUG STR 50 OHM SOLDER

Part	Cable Group	Insertion Loss	Center Contact Plating	Contact Termination	Frequency - Max [Max]	Shield Termination	Number of Ports	Connector Style	Body Finish	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Includes	Housing Color	Voltage Rating	Connector Type	Body Material	Impedance	Mounting Type	Mating Cycles
TE Connectivity AMP Connectors 1-1337611-0	188A, 316, RG-174A	0.2 dB	Gold	Solder	11 GHz	Crimp	1	TNC	Nickel	Brass	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1 pcs, 1 pcs, 1 pcs, 1 pcs, 1 pcs	Silver	500 V	Male Pin, Plug	Brass	50 Ohms	Free Hanging (In-Line)	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
