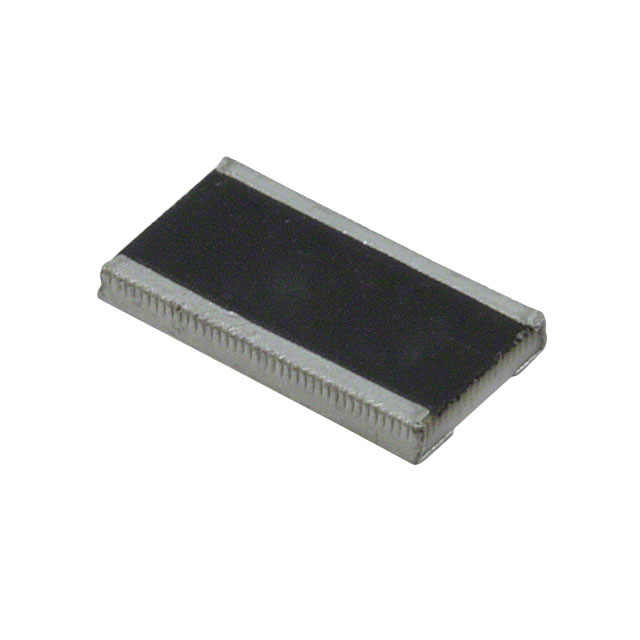

RCL122516R0FKEG
ActiveVishay Dale
RES SMD 16 OHM 2W 2512 WIDE
RCL122516R0FKEG
ActiveVishay Dale
RES SMD 16 OHM 2W 2512 WIDE
Description
General part information
RCL122516R0FKEG
16 Ohms ±1% 2W Chip Resistor Wide 2512 (6432 Metric), 1225 Automotive AEC-Q200 Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RCL122516R0FKEG |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200 |
| Height - Seated (Max) | 0.031 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Package Name | 1225 |
| Power (Watts) | 2 w |
| Ratings | AEC-Q200 |
| Resistance | 16 Ohm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.248 in |
| Supplier Device Package | 1225 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
