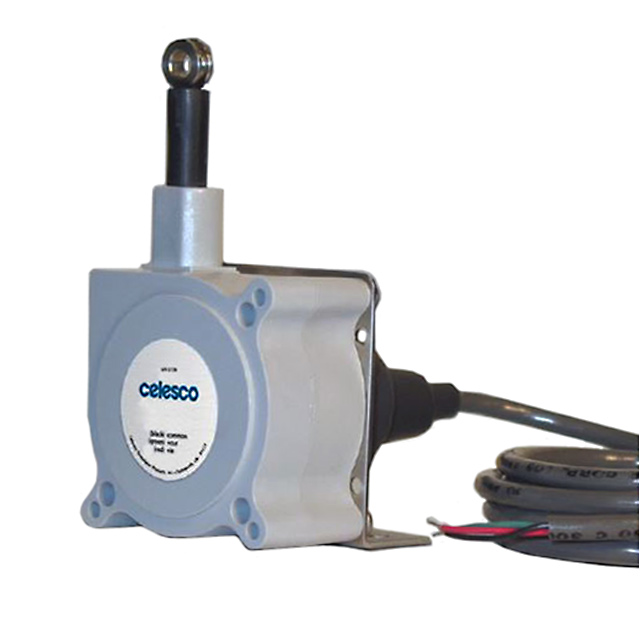

SP2-12

Active

TE Connectivity Measurement Specialties

SENSOR LINEAR 317MM WIRE LEADS

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR LINEAR 317MM WIRE LEADS

Technical Specifications

Parameters and characteristics for this part

Part	For Measuring	Operating Temperature [Min]	Operating Temperature [Max]	Output	Package / Case	Technology	Voltage - Supply	Actuator Type	Resistance Tolerance	Resistance	Linear Range [Max]	Linear Range [Max]	Termination Style
TE Connectivity Measurement Specialties SP2-12	Linear Position	-18 °C	71 °C	Analog Voltage	Box with Wire Leads	Resistive	30 VDC	String Potentiometer	10%	10000 Ohms	317 mm	12.5 in	Wire Leads
TE Connectivity Measurement Specialties SP2-50	Linear Position	-18 °C	71 °C	Analog Voltage	Box with Wire Leads	Resistive	30 VDC	String Potentiometer	10%	10000 Ohms	1270 mm	50 in	Wire Leads
TE Connectivity Measurement Specialties SP2-25	Linear Position	-18 °C	71 °C	Analog Voltage	Box with Wire Leads	Resistive	30 VDC	String Potentiometer	10%	10000 Ohms	635 mm	25 in	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Resistive Sensor Linear Position String Potentiometer Wire Leads
