MGDDI-20-R-I

Active

Gaia Converter

DC DC CONVERTER 24V 24V 20W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

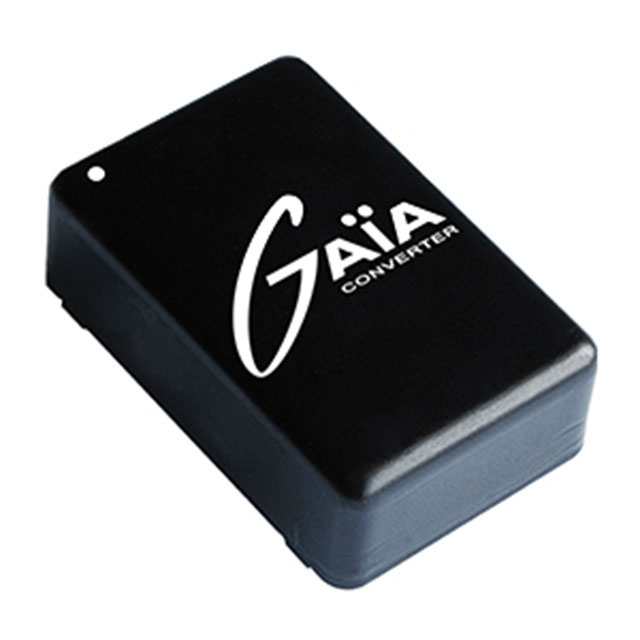

MGDDI-20-R-I

Active

Gaia Converter

DC DC CONVERTER 24V 24V 20W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MGDDI-20-R-I	MGDDI Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	425 mA	125 - 825 mA
Current - Output (Max)	425 mA	125 - 425 mA
Current - Output (Max)	-	250 - 825 mA
Current - Output (Max)	-	2.5 A
Current - Output (Max)	-	2.5 A
Current - Output (Max)	-	600 mA
Efficiency	90 %	83 - 91 %
Features	-	Baseplate
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	16-DIP Module	10-DIP Module, 16-DIP Module
Power (Watts)	20 W	6 - 60 W
Size / Dimension	-	12.5 mm
Size / Dimension	-	72.7 mm
Size / Dimension	-	47.9 mm
Size / Dimension [x]	1.58 "	1.1 - 1.58 "
Size / Dimension [x]	40.1 mm	2.86 - 40.1 mm
Size / Dimension [y]	26.1 mm	1.89 - 26.1 mm
Size / Dimension [y]	1.03 in	0.78 - 1.03 in
Size / Dimension [z]	12.7 mm	0.49 - 12.7 mm
Size / Dimension [z]	0.5 in	0.32 - 0.5 "
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	160 V	160 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	24 V	5 - 24 V
Voltage - Output 2	24 V	5 - 24 V

MGDDI Series

DC DC CONVERTER 24V 24V 6W

Part	Voltage - Output 2	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Type	Number of Outputs	Voltage - Output 1	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Applications	Package / Case	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Gaia Converter MGDDI-06-R-I	24 V	2250 VDC	100 °C	-40 °C	83 %	Through Hole	0.78 in	1.1 "	0.32 "	8.2 mm	28 mm	19.8 mm	160 V	Isolated Module	2	24 V	6 W	125 mA	125 mA	ITE (Commercial)	10-DIP Module
Gaia Converter MGDDI-06-R-F	15 V	2250 VDC	100 °C	-40 °C	83 %	Through Hole	0.78 in	1.1 "	0.32 "	8.2 mm	28 mm	19.8 mm	160 V	Isolated Module	2	15 V	6 W			ITE (Commercial)	10-DIP Module
Gaia Converter MGDDI-20-R-I	24 V	2250 VDC	100 °C	-40 °C	90 %	Through Hole	1.03 in	1.58 "	0.5 in	12.7 mm	40.1 mm	26.1 mm	160 V	Isolated Module	2	24 V	20 W	425 mA	425 mA	ITE (Commercial)	16-DIP Module
Gaia Converter MGDDI-06-R-E	12 V	2250 VDC	100 °C	-40 °C	83 %	Through Hole	0.78 in	1.1 "	0.32 "	8.2 mm	28 mm	19.8 mm	160 V	Isolated Module	2	12 V	6 W	250 mA		ITE (Commercial)	10-DIP Module	250 mA
Gaia Converter MGDDI-20-R-E	12 V	2250 VDC	100 °C	-40 °C	90 %	Through Hole	1.03 in	1.58 "	0.5 in	12.7 mm	40.1 mm	26.1 mm	160 V	Isolated Module	2	12 V	20 W	825 mA		ITE (Commercial)	16-DIP Module	825 mA
Gaia Converter MGDDI-60-R-E	12 V	2250 VDC	100 °C	-40 °C	91 %	Through Hole				0.49 in	2.86 "	1.89 "	160 V	Isolated Module	2	12 V	60 W			ITE (Commercial)			12.5 mm	72.7 mm	47.9 mm	Baseplate	2.5 A	2.5 A
Gaia Converter MGDDI-06-R-C	5 V	2250 VDC	100 °C	-40 °C	83 %	Through Hole	0.78 in	1.1 "	0.32 "	8.2 mm	28 mm	19.8 mm	160 V	Isolated Module	2	5 V	6 W			ITE (Commercial)	10-DIP Module								600 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 129.25

Description

General part information

MGDDI Series

Isolated Module DC DC Converter 2 Output 24V 24V 425mA, 425mA 12V - 160V Input
