2798789
ActivePhoenix Contact

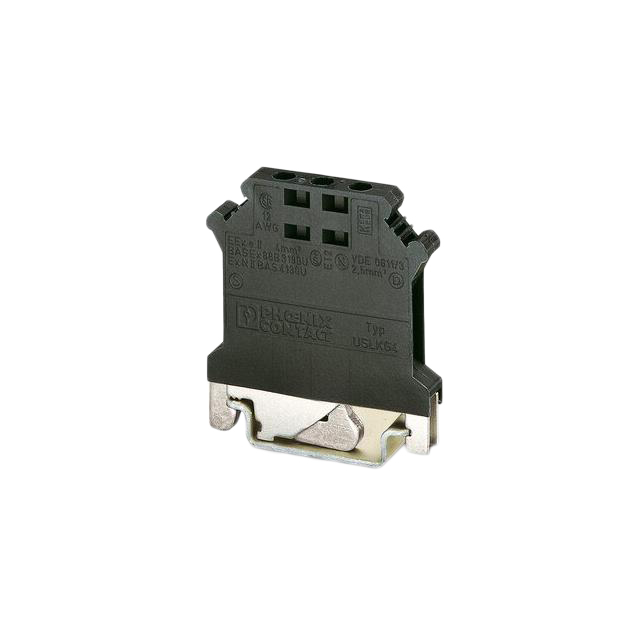

CONN TERM BLK 12-24 AWG BLACK
2798789
ActivePhoenix Contact
CONN TERM BLK 12-24 AWG BLACK
Description
General part information
2798789
Terminal Block Connector Position Black 12-24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 2798789 |
|---|---|
| Color | Black |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-2 |
| Stripping Length | 9 mm |
| Terminal Width | 6.2 mm |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
