1620144
ActivePhoenix Contact

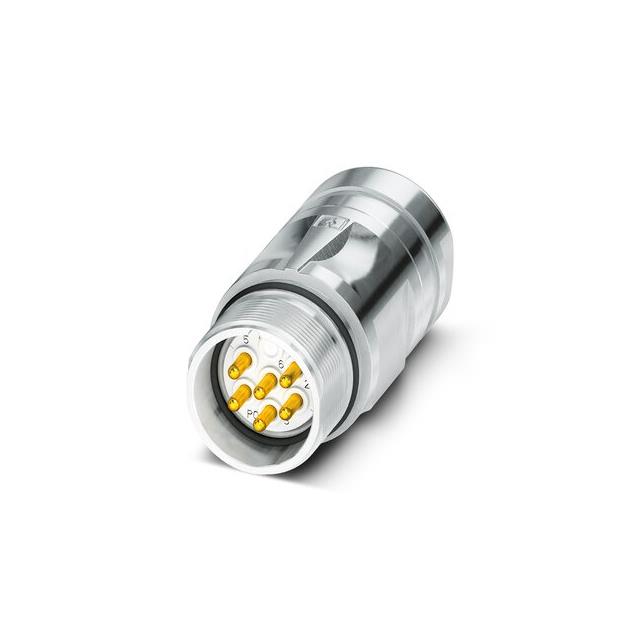

CONN RCPT MALE 6POS SOLDER CUP
1620144
ActivePhoenix Contact
CONN RCPT MALE 6POS SOLDER CUP
Description
General part information
1620144
6 (Power) Position Circular Connector Receptacle, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 1620144 |
|---|---|
| Cable Opening (Max) | 0.236 in |
| Cable Opening (Min) | 0.157 in |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Fastening Type | Push-Twist |
| Features | Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PBT, Polybutylene Terephthalate |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Position Types | Power |
| Primary Material | Metal |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M23-6 |
| Shielding | Shielded |
| Termination | Solder Cup |
