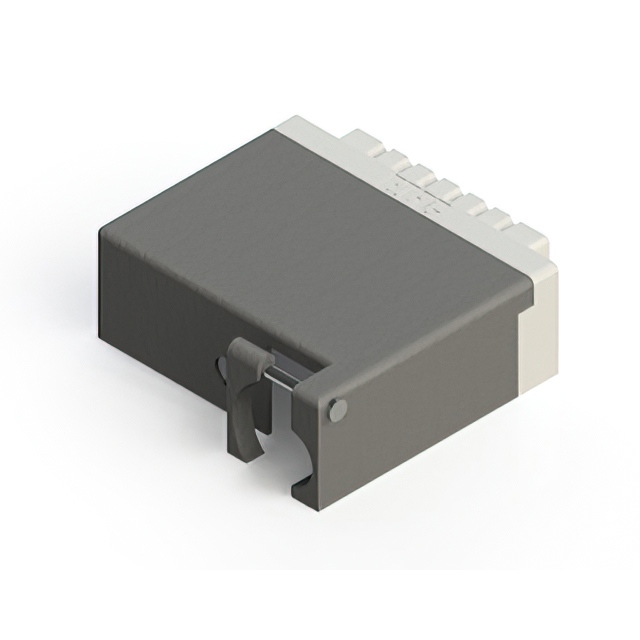

Specification	516-090-501-460

Color	Gray
Connector Style	Rack and Panel
Connector Type	Receptacle, Hermaphroditic Contacts
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Current Rating	8.5 A
Features	Guide Pin, Jackscrew
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Columns	15
Number of Positions	90
Number of Positions Loaded	All
Number of Rows	13
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.15 in
Termination	Solder

516 Series

...

Part	Number of Rows	Connector Type	Features	Number of Positions	Connector Style	Connector Usage	Pitch	Color	Mounting Type
EDAC Inc. 516-090-500-506	13	Housing for Non-Gendered Contacts	Jackscrew Socket	90	Rack and Panel	Plug	0.15 in	Green
EDAC Inc. 516-056-520-166	9	Housing for Non-Gendered Contacts	Backshell Jackscrew Socket	56	Rack and Panel	Plug	0.15 in	Green	Free Hanging (In-Line)
EDAC Inc. 516-120-541-356	17	Housing for Non-Gendered Contacts	Backshell Jackscrew Socket	120	Rack and Panel	Plug	0.15 in	Gray	Free Hanging (In-Line)
EDAC Inc. 516-038-540-242	9	Housing for Non-Gendered Contacts	Backshell Jackscrew Socket Mating Guide	38	Rack and Panel	Receptacle	0.15 in	Green	Free Hanging (In-Line)
EDAC Inc. 516-090-542-311	13	Housing for Non-Gendered Contacts	Backshell Guide Pin Jackscrew	90	Rack and Panel	Plug	0.15 in	Gray	Free Hanging (In-Line)
EDAC Inc. 516-038-000-232	9	Housing for Non-Gendered Contacts	Backshell Jackscrew Socket Mating Guide	38	Rack and Panel	Receptacle	0.15 in	Green	Free Hanging (In-Line)
EDAC Inc. 516-038-542-236	9	Housing for Non-Gendered Contacts	Backshell Jackscrew Socket	38	Rack and Panel	Receptacle	0.15 in	Green	Free Hanging (In-Line)
EDAC Inc. 516-038-541-606	9	Housing for Non-Gendered Contacts	Jackscrew Socket	38	Rack and Panel	Receptacle	0.15 in	Green
EDAC Inc. 516-090-500-516	13	Housing for Non-Gendered Contacts	Backshell Jackscrew Socket	90	Rack and Panel	Plug	0.15 in	Green	Free Hanging (In-Line)
EDAC Inc. 516-020-520-655	4	Housing for Non-Gendered Contacts	Backshell Jackscrew	20	Rack and Panel	Receptacle	0.15 in	Green	Free Hanging (In-Line)
