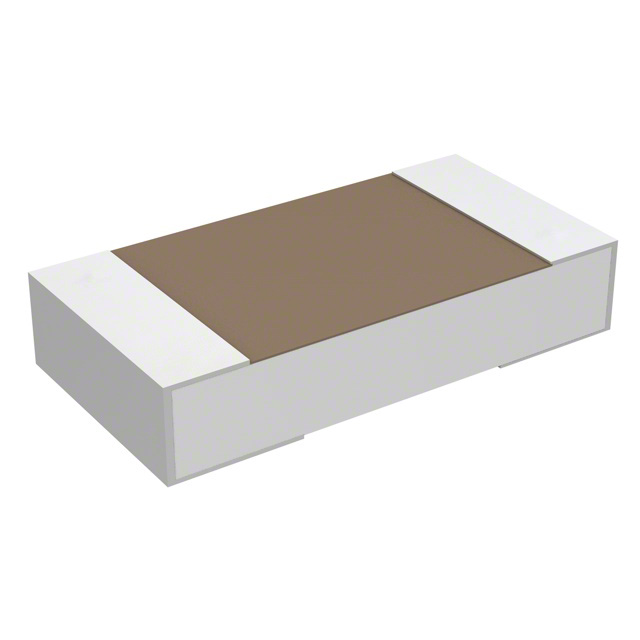

Y40637K50000B0R
ActiveVPG Foil Resistors
RES SMD 7.5K OHM 0.1% 1/2W 1206
Y40637K50000B0R
ActiveVPG Foil Resistors
RES SMD 7.5K OHM 0.1% 1/2W 1206
Description
General part information
Y40637K50000B0R
7.5 kOhms ±0.1% 0.5W, 1/2W Chip Resistor 1206 (3216 Metric) Moisture Resistant, Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y40637K50000B0R |
|---|---|
| Composition | Metal Foil |
| Features | Moisture Resistant, Non-Inductive |
| Height - Seated (Max) | 0.025 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 225 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 7.5 kOhm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.062 in |
| Temperature Coefficient | 2.5 ppm/°C |
| Tolerance | 0.1 % |
