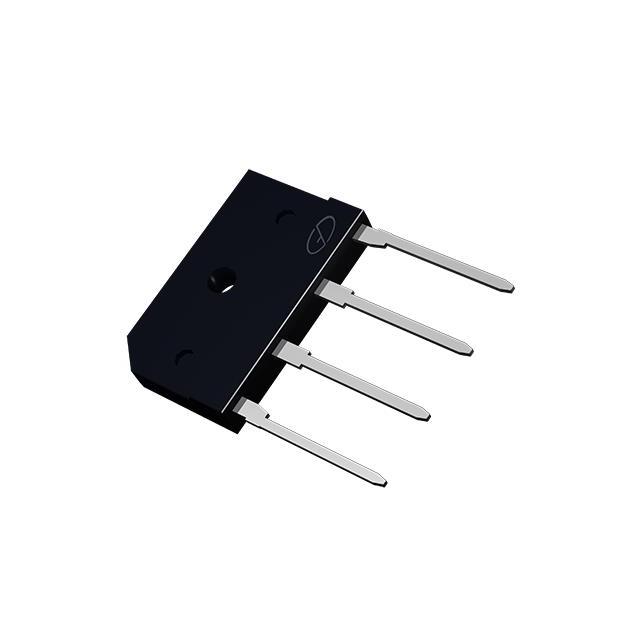

KBJ4JU
ActiveGood-Ark Semiconductor
BRIDGE RECTIFIER, GENERAL PURPOS
KBJ4JU
ActiveGood-Ark Semiconductor
BRIDGE RECTIFIER, GENERAL PURPOS
Description
General part information
KBJ4JU
Bridge Rectifier Single Phase Standard 600 V Through Hole KBJ(3S)
Technical Specifications
Parameters and characteristics for this part
| Specification | KBJ4JU |
|---|---|
| Current - Average Rectified (Io) | 2.3 A |
| Current - Reverse Leakage | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | KBJ, 4-SIP |
| Package Name | KBJ(3S) |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) | 1 V |
| Voltage - Peak Reverse (Max) | 600 V |
