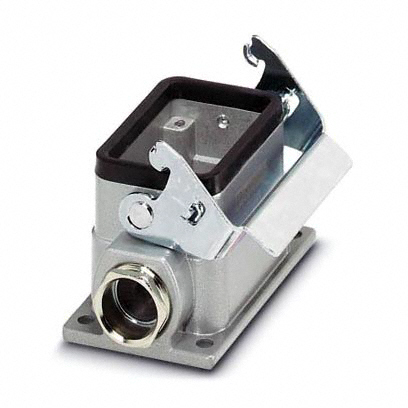

1771150
ObsoletePhoenix Contact
CONN BASE SIDE ENTRY SZB6 PG16
1771150
ObsoletePhoenix Contact
CONN BASE SIDE ENTRY SZB6 PG16
Description
General part information
1771150
Base - Box Mount Connector Side Entry PG16 B6 IP65 - Dust Tight, Water Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | 1771150 |
|---|---|
| Connector Type | Base - Box Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B6 |
| Size / Dimension Height | 2.047 in |
| Size / Dimension Length | 3.307 in |
| Size / Dimension Width | 2.047 in |
| Style | Side Entry |
| Thread Size | PG16 |
